50 TPH Sand Washing Line For Australian Customers

We are designing a 50-ton-per-hour sand washing line for a quarry and sand washing project in Australia. Our goal is to install a reliable sand washing system to process continental sand (for both washed concrete sand and construction fill), operating approximately 8–10 hours per day, 5–6 days per week.

We want to recover as much sand as possible, including fines. And a fine sand recovery system is needed to recover 0.075–3mm material.

Required Output Specification:
– Fineness modulus: 2.6–2.9
– Particle size: 0.075–4.75 mm
– Fines passing No. 200 sieve: 3–5% max
– Feed material: river sand, up to 10 mm

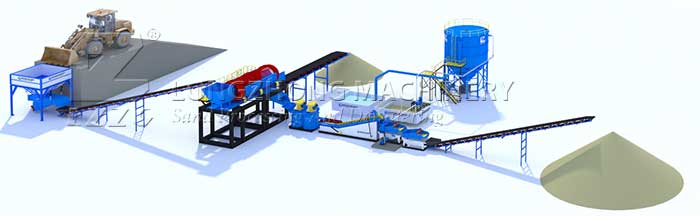

We designed a 3D workflow of the sand washing line for the Australian client, who is highly satisfied with the design. The production line consists of the following equipment:
Hopper
Belt Conveyor
Rotary Screen
Attrition Scrubber
Multi-functional Sand Washer
Dewatering Screen
Sewage Treatment System
