Dewatering Screen

DEWATERING SCREEN

Dewatering screen aka sand dewatering machine is the most suitable machine for sand dewatering process. They are designed as linear vibrating screen that widely applicated to dewatering, desliming, sculting, washing, degritting and screening. Dewatering screens as the most widely used dehydration product, which are mainly to produce a consistent dripless finished product and handle sand, gravel, aggregates, artificial sand, sea sand, clay, ores, tailings, coal, mining and other materials.

LZZG adopts deep bed design and high wearable polyurethane screen panels as the screening media, which can more effectively remove the more moisture. And depending on the gradation of material processed, dewatering screen will typically produce a finished product with final moisture content as low as 8%, getting the highest possible percentage of final product. LZZG dewatering screen can also recover fine solid particles from liquids as a sand recycling system. The materials that ≥ 200 mesh, more than 95% can be recycled and dewatered to dripless prior to stockpiling. LZZG dewatering screens capacity from 30-300TPH for sale now!

  • dewatering screen install
  • sand dewatering
  • dewatering effect
  • dewatering machine
  • coal dewatering screen
  • dewatering machine for coal
  • dewatering screen design
  • dewatering working

Working Principle

LZZG Dewatering screens adopt dual-motor self-synchronization technology. When working, materials are fed onto the screen surface at the feed end of dewatering screen by vibrating feeder or directly from sand washer to achieve a rapid dewatering. As the material piled up on the screen, a puddle began to form.

Under a reverse movement of two sets of vibrating motor in the same angular velocity, the inertial force produced by an eccentric block in a particular aspect to repeated stack or offset. So as to produce a great shock driving screen box along the straight line track to do periodic reciprocating motion, make the materials on screen from input to output to do gradually vibrate and water is separated from materials and pass screen hole and drop to water tank. Solids on the screen are moving towards the outlet end of screen and conveyed to stock pile.

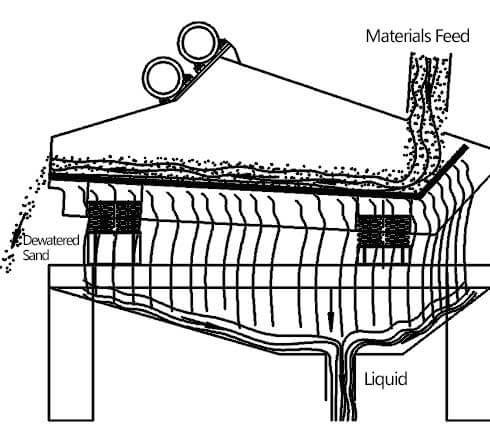

Dewatering Screen Working Principle

Video

All videos are from our customer sites

LZZG TS1845 silica sand dewatering screen for sale 150tph capacity

Dewater screen for silica sand washing

LZZG sand washer with dewatering unit

Part Specifications

Model Power (kw) No. Capacity (t/h) Feed size (mm) Screen parameter Weight (kg) Dimension (mm)
Screen size(mm) Screen area (m²) Screen material
TS0918 1.1 2 10-30 ≤10 900*1800 1.6 PU 600 1885*1290*1077
TS0924 1.1 2 10-30 ≤10 900*2400 2.2 PU 850 2483*1290*1215
TS1224 2.2 2 30-60 ≤10 1200*2400 2.88 PU 1100 2485*1590*1424
TS1230 2.2 2 30-60 ≤10 1200*2400 2.88 PU 1225 3084*1590*1439
TS1236 3 2 30-60 ≤10 1200*3600 4.32 PU 1468 3677*1590*1498
TS1530 3 2 60-100 ≤10 1500*3000 4.5 PU 1357 3083*1890*1433
TS1536 3 2 60-100 ≤10 1500*3600 5.4 PU 1750 3683*1890*1445
TS1836 5.5 2 100-130 ≤10 1800*3600 6.48 PU 3030 3717*2423*1927
TS1842 5.5 2 100-130 ≤10 1800*4200 7.56 PU 3434 4368*2421*2104

Applications

Dewatering screens have a wide range of applications as followings. And are usually be used to dewater below 10mm particles, such as sand, gravel and coal, etc; recycle and dewater fines of 0.074-3mm particles in fines recycling system

Features

  • With compact structure, high-strength bolts fixed and beam structure for the rigidity and strength
  • Large capacity per unit area, high dehydration rate, energy saving
  • No drip finished products, better inventory management and shorter inventory cycle
  • Cleaning, dehydration, transportation, screening and other functions are integrated reasonably
  • Dewatering products of different size on one unit with a layered sieve plate design
  • Rubber spring for shock absorption and reduce noise
  • Wear-resistant PU screens as screen media, high precision and efficiency and no blocking
  • High-quality vibration motor for continuous and uninterrupted operation
  • Screen panel inclination is adjustable to improve dewaterability
  • Recovery fine material with hydrocyclones
  • Can be used stand-alone or with classifying tank, bucket wheel washer
  • Low energy consumption, convenient installation and commissioning, easy operation and maintenance
dewatering screens pdf dewatering screens pdf export@lylzzg.com
Online Service Send Request

Cases

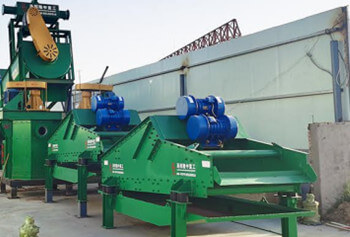

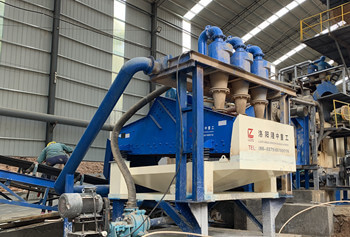

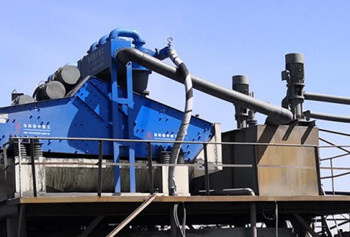

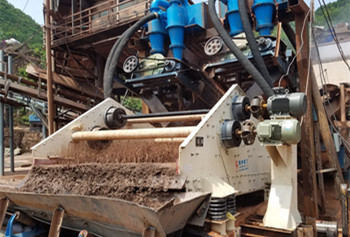

LZZG dewatering screens working sites are over the world and applied to various materials.

Contact

Our company observe the principle of "timely communication, rapid response, accurate and efficient, reasonable and thoughtful". We have set up a complete and efficient service system, and also have an experienced and skilled techinal team. Our technicians are available for personal visits to your working site, understand the specific needs of them, and help customers analyze and solve problems. We aim to provide the best field services to help customers enhance their efficiency and better yet. Email: export@lylzzg.com
