Overview

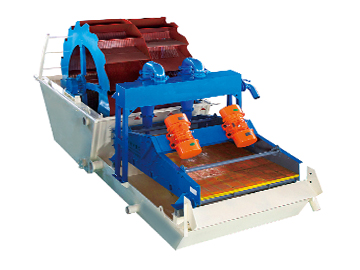

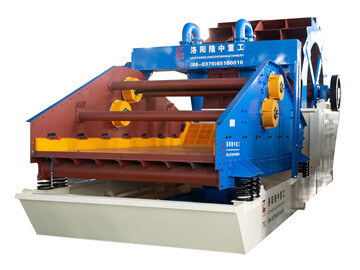

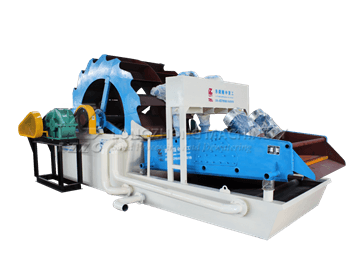

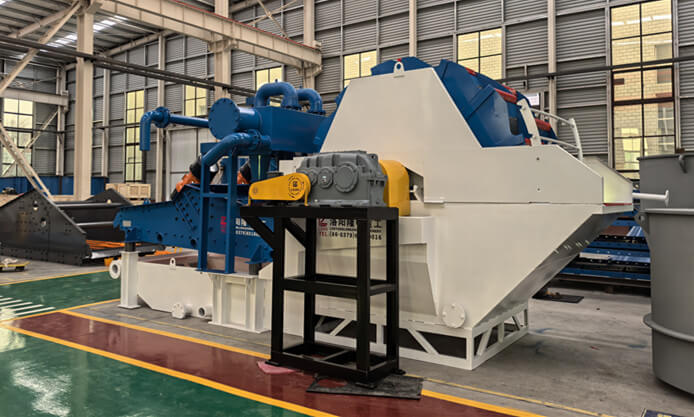

LZZG sand washing and recycling machine is an integrated sand washing machine which combines washing and recycling in one unit. Its main parts include an XSD wheel sand washer, high-frequency dewatering screen, high-pressure hydrocyclone, cleaning tank, return box, high-pressure wear-resistant slurry pump and motors.

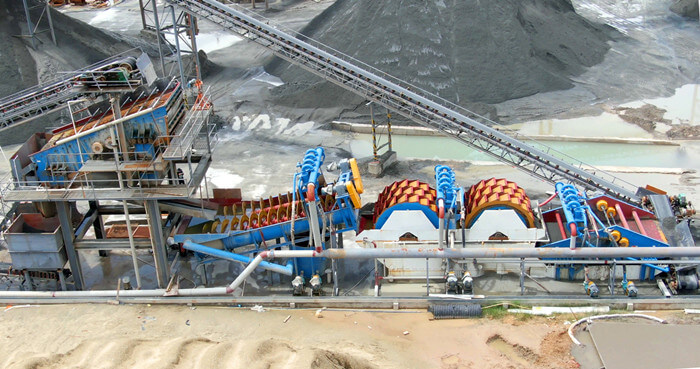

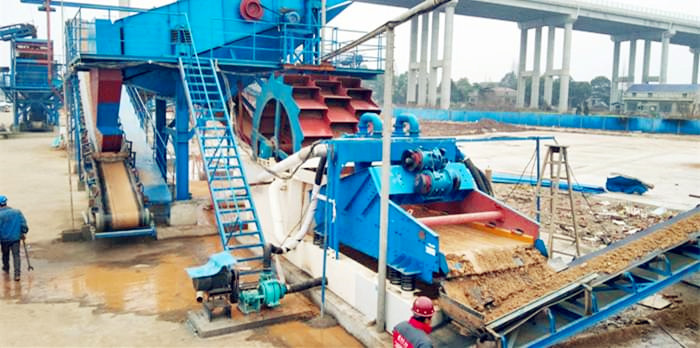

With a compact structure and high efficiency, this integrated sand washing machine is widely used for washing, screening, recycling and dewatering crushed sand, river sand, lake sand and sea sand.
-
Working principle
Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.
Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.
Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.
-
Features & Benefits
1.Higher sand quality, lower moisture content.
2.Recycled fine size 0.16-3mm sand, lower mud content.
3.Compact structure and easy installation.
4.High productivity and 95% of fine particles kn the material can be recycled.
5.Solve cleaning problem of seclimentation tank and improve economic performance at the same time.
-
Specifications
Model Feeding Size (mm) Capacity (t/h) Impeller Size (mm) Hydrocyclone (mm) Screen Panel (mm) Power (kw) Overall Size (mm) DL40 ≤10 20-40 1800*800 250*2 1200*2400 29.4 5800*5000*1950 DL60 ≤10 30-60 2600*1200 300*2 1500*3000 40 5800*5560*2750 DL80 ≤10 40-80 3000*1600 300*2 1800*4200 46.5 7950*6200*3700 DL100 ≤10 60-100 3000*1600 350*2 1800*4200 57.5 7950*6200*3700 DL150 ≤10 100-150 3600*2000 300*2 2400*4200 89.5 8500*6800*3700 DL200 ≤10 120-200 3600*2400 350*4 3000*4800 115 7950*7400*4100 DL250 ≤10 160-250 4200*3000 300*6 3600*6000 149 8580*8020*4860 -
