Belt Conveyor

Feed Size: 400-1200mm

Production Capacity: 40-480t / h

Application Scope: metal and nonmetal minerals, etc.

Process Materials: suitable for crushing various soft and hard ores with compressive strength not higher than 320MPa, such as limestone, calcite, dolomite, barite, talc, calcium carbonate, gypsum, bentonite, glass, etc.

  • Overview

    Belt conveyor, commonly known as conveyor belt system, can be used in the ambient temperature range from – 20 ℃ to + 40 ℃, and the temperature of conveying materials is below 50 ℃.

    In industrial production, the belt conveyor is the link connecting all production equipment, ensuring the continuity and automation of production links. LZZG belt conveyor is a kind of mining conveyor, which is widely used in the transportation of sandstone, quartz sand, river pebble, granite, limestone, coal gangue, etc.

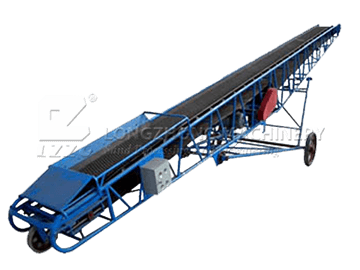

    belt conveyor

  • Working principle

    Belt conveyor is mainly composed of frame, conveyor belt, idler, drum, tensioning device, transmission device, etc.

    When the belt conveyor is working, the driving drum is driven by the motor through the reducer, and the conveyor belt is driven by the friction between the driving drum and the conveyor belt.

    Driving drum is generally installed at the unloading end to increase the traction force and facilitate the dragging. The material is fed from the feeding end, falls on the rotating conveyor belt, and is transported to the discharge end by the friction of the conveyor belt.

  • Features & Benefits

    1. High carrying capacity and the length is customized.

    2. Anti-skidding design ensure that it works very well even in severe environment.

    3. Easy to operate and easy to maintain for it has simple structure.

    4. Different types can be customized.

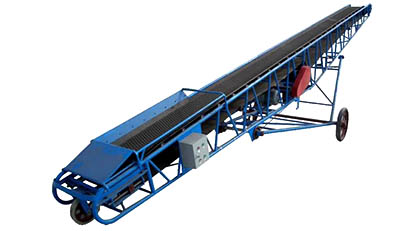

    aggregate belt conveyor

  • Specifications

    Model Width(mm) Inclination(°) Speed(m/s) Capacity(t/h) Power kw(L≤30m)
    B800 800 0-17 1.0-2.0 300-600 5.5-18.5
    B1000 1000 0-17 1.0-2.0 490-900 7.5-22
    B1200 1200 0-17 1.0-2.0 730-1400 11-30
