Sand & Gravel Production Line | Central Asia

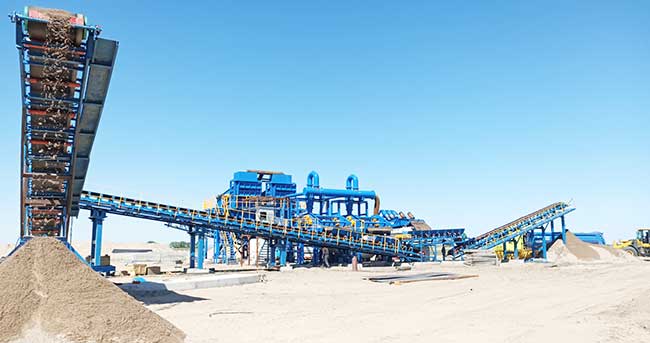

Project Overview

This is a complete sand and gravel production line delivered under EPC / Semi-EPC mode, applied for processing quarry mixed materials in Central Asia. The maximum feed size reaches 300 mm, with clay content up to 10% and moisture content below 5%.

Finished products are divided into 5 particle sizes:

0–2.5 mm, 0–5 mm, 5–20 mm, 20–40 mm, 40–70 mm.

All products comply with Russian GOST 8736-2014 (sand) and GOST 8267-93 (crushed stone) standards.

Working Condition Challenges

The site features extreme temperature variation: ambient temperature ranges from -30°C in winter to +60°C in summer, together with heavy dust. All equipment is specially optimized for harsh working environments.

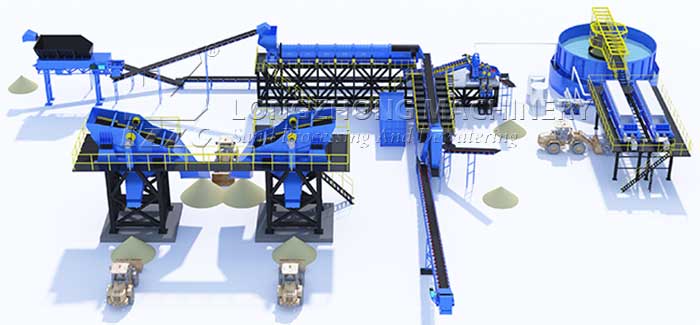

Custom Complete Plant Solutions

A professional process including scrubbing, crushing, screening, sand washing, fines recovery and water recycling is adopted to handle high-clay raw materials, the main equipment configuration is detailed as below:

System	Equipment Models	Key Parameters
Feeding System	Apron Feeder	Capacity: 130 m³/h; Belt width: ≥1200 mm; Equipped with IE3 high-efficiency motor and VFD
Crushing System	Primary: PE-750×1060 Jaw Crusher Secondary: CS/HP Series Hydraulic Cone Crusher	Impact crusher is prohibited; With overload protection for stable crushing of hard materials
Desliming System	Rotary Trummer Scrubber	Diameter: ≥1800 mm, Length: ≥4500 mm; Built-in water spraying system for high-clay materials
Screening System	2 sets of 3-deck Vibrating Screens	Polyurethane screen media; Equipped with water spraying device
Sand Washing & Fines Recovery System	2 sets of XSD-3620 Wheel Sand Washers 4 sets of Φ500 Hydrocyclones + Dewatering Screen	Fines loss rate ＜ 10%
Slurry Conveying System	6/4D-AH Slurry Pump (4 units)	3 working units + 1 standby unit; Ensure continuous water circulation
Auxiliary System	Full set of Belt Conveyors, Closed-loop Water Recycling System, Belt Scales for each finished product	Standard full configuration
Automation & Electrical System	Siemens S7-1500 PLC + SCADA System Siemens VFD	Support VPN remote monitoring & full-process automation; Auto-generate daily/monthly production reports; All motors: IP55 protection class, IE3 energy efficiency

Our Services

Quotation: FOB China
Warranty: Minimum 12 months
Spare parts: One-year consumption spare parts list supplied
After-sales: On-site installation & commissioning support, Russian language technical training available
Documents: Full set of drawings, technical datasheets, ISO & CE certificates

Project Advantages

The whole line is fully adapted to extreme temperature and heavy dust conditions. Mature process for high-clay materials, stable operation and qualified final products. High-standard automatic control system ensures easy operation and intelligent management.
