Φ2000×10000 MM Gravel Rotary Drum Scrubbers For Poland

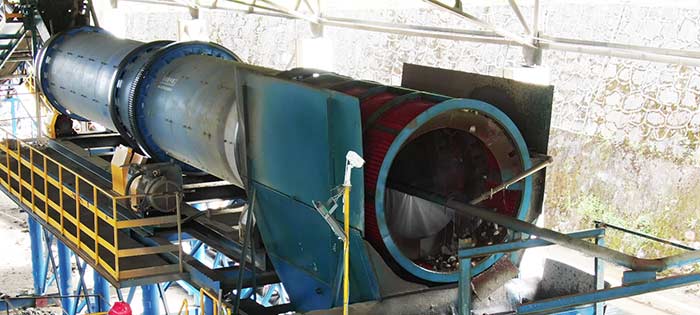

A Poland customer intends to select a gear drive rotary drum scrubber for his sand and gravel plant. The feed material is clay-contaminated aggregate/gravel in the size range of 16–100 mm.

Following extensive analysis and consultations, the expected specifications for the rotary drum scrubber is a diameter of 2,000 mm and an effective length of 10,000 mm. The version with a 6-meter drum length is too short; it will not be able to properly dissolve/crush the clay.

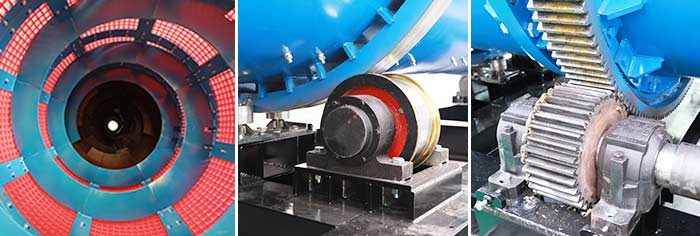

Inside the scrubber, there should be paddles to increase the mixing and grinding of the clay in the gravel-sand mixture and equipped with high‑pressure spray system (water pressure: 0.3‑0.5 MPa). The washer will operate using water fed into the drum.

The rotary drum scrubber required by the Poland customer is an extended‑length model and requires customization. After multiple rounds of negotiations, we have provided detailed configuration parameters for the rotary drum scrubber.

Parameter Item	Unit	Φ2000×10000 mm	Φ2000×6000 mm
Rated Capacity	t/h	250-350	60-150
Maximum Capacity	t/h	350	150
Maximum Feed Size	mm	≤210	≤110
Processable Material	—	Gravel, sand, ore, dolomite, graphite, granite	Gravel, sand, ore, dolomite, graphite, granite
Total Weight	t	22.3	12
General Arrangement Drawing (GA)	Yes/No	To be provided after customization	To be provided after customization
Overall Width	mm	2430	2500
Overall Length	mm	10500	8800
Drum Shell Thickness	mm	20	20
Drum Shell Steel Grade	—	Q235-B	Q235-B
Support Rollers Number	pcs	6	4
Support Roller Material	—	Cast steel + rubber coating	Cast steel + rubber coating
Paddle Material	—	Hardox wear-resistant steel plate	Hardox wear-resistant steel plate
Paddle Type	—	Bolted, replaceable	Bolted, replaceable
Drum Lining Thickness	mm	Rubber / PU / Hardox steel plate	Rubber / PU / Hardox steel plate
Lining Material	—	Hardox / rubber / polyurethane	Hardox / rubber / polyurethane
Motor Power	kW	37	30
Motor Manufacturer	—	Optional domestic first-line / Siemens	Optional domestic first-line / Siemens
Motor Energy Efficiency Class	—	IE3	IE3
Gearmotor Brand and Type	—	Domestic hard-tooth surface / SEW optional	Domestic hard-tooth surface / SEW optional
Drum Rotational Speed	r/min	8-22	9-12
Frequency Inverter Installed	Yes/No	Optional configuration	Optional configuration
Inverter Manufacturer	—	Siemens / Schneider	Siemens / Schneider
Bearing Manufacturer	—	Harbin / Luoyang / SKF	Harbin / Luoyang / SKF
Bearing Type	—	Self-aligning roller bearing	Self-aligning roller bearing
Lubrication System	—	Manual grease lubrication	Manual grease lubrication
Water Consumption	m³/h	1.5–4	1.5–2.5
Number of Nozzles	pcs	26‑28	16‑18
Drum Inclination Angle	°	3-5	3-5
Inclination Adjustable	Yes/No	Fine-tunable	Fine-tunable
Control Cabinet Manufacturer	—	Siemens / Schneider components	Siemens / Schneider components
Supply Voltage	V	400	400
IP Protection Rating	—	IP55	IP55
PLC Manufacturer	—	Siemens / Schneider / Omron	Siemens / Schneider / Omron



Our manufacturer does not have our own permanent representative established within European Union. According to EU regulation, the buyer can appoint an EU‑based authorized representative to keep the technical documentation for 10‑year retention period. We will provide all required technical files to support this.
