100 TPH Concrete Sand Washing Plant Vietnam

According to the on‑site conditions at the Vietnam customer’s concrete plant, we adopt a gravity flow/step-design layout and the finished product of the concrete sand washing plant is concrete sand sized at 5 mm.

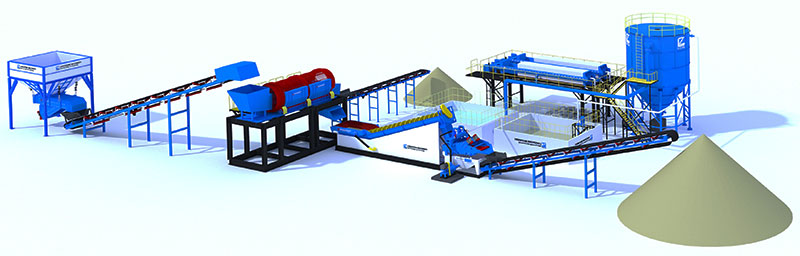

Concrete Sand Washing Plant Flow

Concrete Sand Washing Plant Equipments

Equipment	Specs	Requirement
Grizzly Screen	Gap size: 50mm	Heavy-duty bars; installed on top of the Trommel hopper
Trommel Screen	Size: ø1500mm × 5000mm PU mesh aperture: 5mm (main section) 15mm (tail gravel section)	Tyre-driven type; integrated water spray lines
Twin Screw Sand Washer	Model: 2XL-920 Plate thickness: minimum 8–10mm	Outboard bearing design with water-sealed housings; PU wear liners on screw flights
Radial Stacker Conveyor (6M Height)	Belt: B800mm High Chevron Belt Cleat height: 15–20mm Length: 18.5–20m Inclination: 18° Swing motor: 11 kW	Heavy-duty modular truss frame; Hydraulic Lifting System for height adjustment; Motorized wheel-drive system for automatic left/right swinging



The wastewater treatment system is provided as an optional add-on, planned as the Phase 2 upgrade project for this concrete sand plant.
