Sand Processing Equipment Fine Sand Recycling Machine

Brief Introduction

Sand Recycling Machine

Now the sand making plant mostly utilize a wet production craftwork in the sand processing treatment. The biggest problem that existing in the artificial sand production line is the out flow rate of the fine sand, some times, the proportion can reach more than 20%.
The flowing out fine sand decrease the quality of sand, it cause bad sand grading and rough modulus. Excessive sand emisson also pollute the environment. So the fine sand extraction machine is urgently needed.
LZZG sand recycling machine manages to resolve this flaw. Effectively reduce the quality of fine sand losing , and make it in the reasonable scope of 5-10%.

Cases

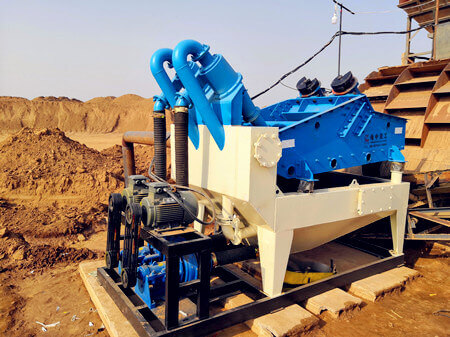

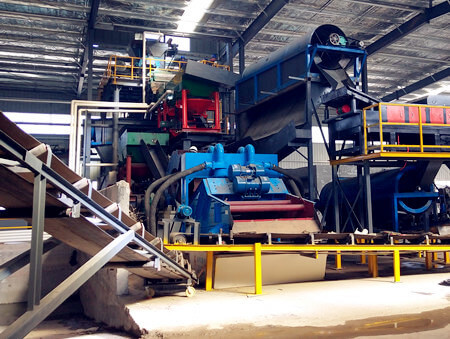

LZ650 Sand Extraction Machine

The capacity of LZ650 sand extraction machine with tank is 400m3/h, equivalent to 600t/h.

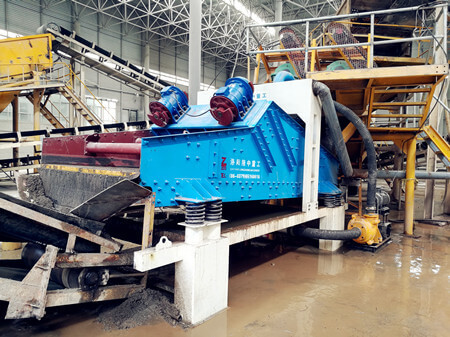

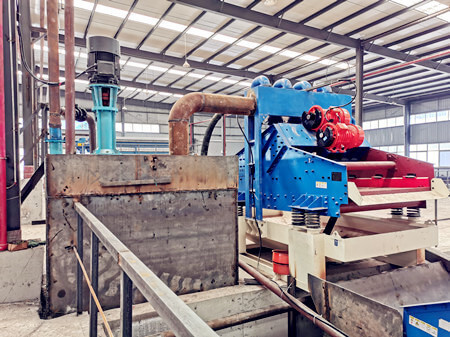

LZ650 Sand Extraction Machine

LZ650
Sand Extraction Machine

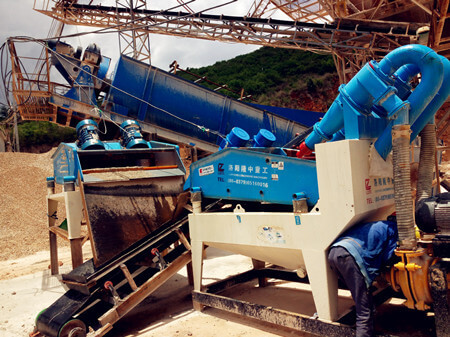

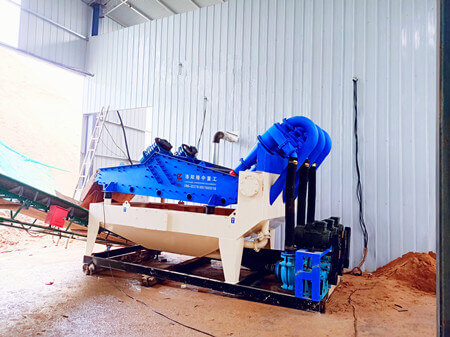

LZ650 Sand Extraction Machine

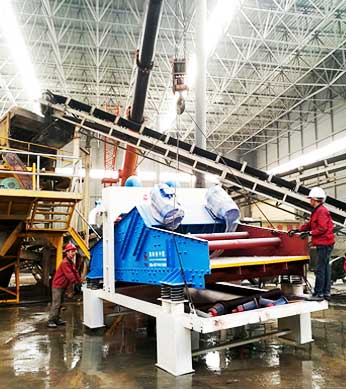

Features

  • Stable Vibration

    Sand extraction machine has stable vibration to make sure the high efficiency and the low losing of fine sand.

  • Long Service Life

    LZ series sand recycling machine can be used for a long time, so that it can serve our customs better.

  • Adjustable Vibration Strength

    Feeding speed is easy to change through adjust vibration strength

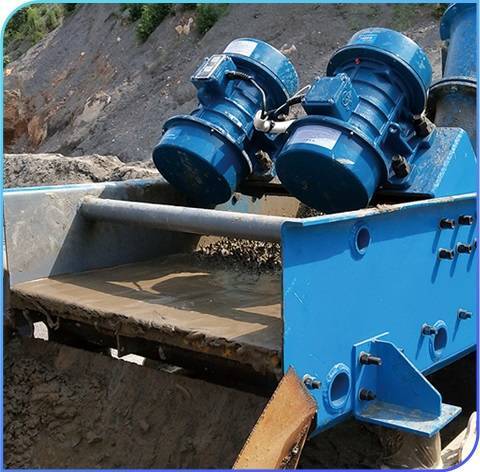

  • Dual Eccentric Motors

    Dual eccentric motors is the source of vibration, it has the advantage of energy cost.

  • Easy to Maintain

    Convenient Maintenance Bolt tighten vibrator and screen bars are ease to maintenance.

  • Low Noise

    Due to the advanced technology used in LZ series sand recycling machine, the advantage of it is low noise.

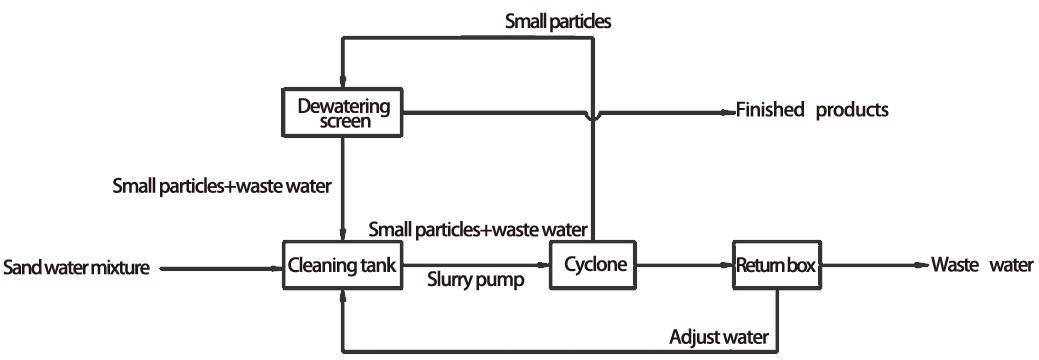

Working principle

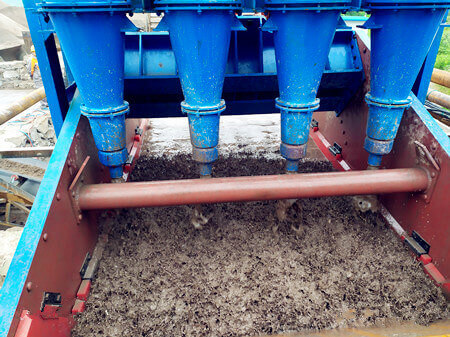

Through rubber pipes sand and water mixture is extracted from cleaning tank into slurry pump. The fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen. The waste water willflow back to the return box, through weld chute or pipes flowing to a settling pond.

Working principle

Specification

Model Water (m³/h) Cyclone Screen panel size(mm) Screen material Total power (kw) Weight (kg) Dimension (mm)
LZ250 50-70 250 900*1800 PU 13.1 1460 3120*1300*2721
LZ300 60-90 300 900*1800 PU 17.2 1510 3120*1300*2721
LZ350 80-120 350 900*1800 PU 20.7 1700 3120*1300*2721
LZ550 100-140 250*2 1200*2400 PU 26.4 2170 3630*1600*2773
LZ650 120-180 300*2 1200*2400 PU 34.4 2500 3630*1600*2773
LZ750 160-240 350*2 1200*2400 PU 41.4 2850 3630*1600*2773
LZ900 180-270 300*3 1500*3000 PU 51 3500 4600*1900*2612

Video

LZ series sand recycling machine recycling fine silica sand

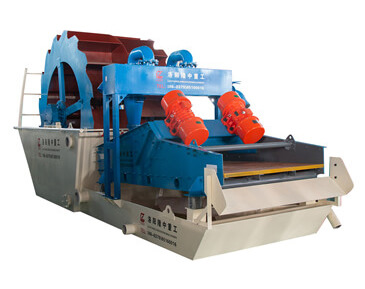

Sand recycling equipment-LZ sand washing & recycling machine

Sand recycling machine working in the washing plant
