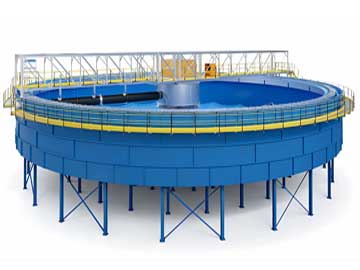

Gravity Thickener

Water treatment capacity: 250-3100m³/h

Concentration Rate: 45%-55%

Main Function: solid liquid separation, similar to clarifier and sedimentation tanks.

Application Scope: Gravity thickeners are often used in mining, metallurgy and other industries to process various minerals, metals and non-metals.

  • Overview

    Gravity thickener is a solid-liquid separation equipment based on gravity settlement, which is similar to clarifier and sedimentation tank. It can make suspended solids in the slurry gradually sink to the bottom of the tank.

    Gravity thickeners are often used in mining, metallurgy and other industries to process various minerals, metals and non-metals. In addition, gravity thickeners can also be used in industrial wastewater treatment, environmental protection governance and other fields.

  • Working principle

    gravity-thickener1

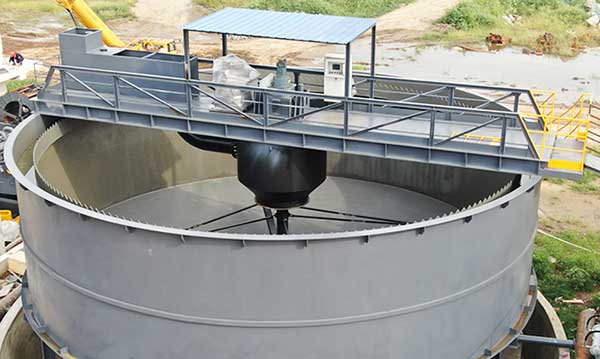

    When working, the slurry is mixed with the flocculant and enters the gravity thickener through the central cylinder. The slurry is guided from the feed vertical cylinder to the surrounding areas by the guide plate at the outlet of the feed vertical cylinder, allowing the slurry to diffuse to the surrounding areas.

    A gravity thickener can concentrate slurry with a solid content of 10% -20% into underflow slurry with a solid content of 45% -55% through gravity settling. With the help of a rake installed in the thickener, the thickened underflow slurry is discharged from the underflow port of the thickener. The upper layer of clear water is discharged from the top drainage outlet to achieve mud water separation.

  • Features & Benefits

    1. Large processing capacity per unit volume and high concentration efficiency.

    2. Hydraulic multi-point drive, infinite speed regulation, high mechanical strength, with overload protection function.

    3. The hydraulic rake lifting device is used for reliable operation.

  • Specifications

    Model Diameter (m) Settlement Area (m²) Taper (°) Power (kw) Overall Size (m)
    NMJ10

    10

    78

    10

    11

    φ10*7.9

    NMJ12

    12

    113

    10

    11

    φ12*8.1

    NMJ14

    14

    153

    10

    11

    φ14*8.3

    NMJ16

    16

    200

    10

    11

    φ16*8.5

    NMJ18

    18

    254

    10

    11

    φ18*8.7

    NMJ20

    20

    314

    10

    11

    φ20*8.9

    NMJ22

    22

    380

    10

    16.5

    φ22*9.1

    NMJ24

    24

    450

    10

    16.5

    φ24*9.2

    NMJ26

    26

    530

    10

    16.5

    φ26*9.6

    NMJ28

    28

    615

    10

    22

    φ28*9.8

    NMJ30

    30

    708

    10

    22

    φ30*10
