How to Select Vibrating Screens for Aggregate Production

There are numerous vibrating screen models on the market. The 6 core tips below help enterprises pick suitable vibrating screen equipment accurately.

1. Select Based On Material Properties

Take particle size, shape, moisture content, mud and powder content into full consideration. Material conditions greatly affect screening performance and mesh clogging risk. Manufactured sand requires strict gradation control, so square mesh holes are preferred for higher classification precision and stable finished gradation over elongated and round holes.

2. Select Based On Equipment Parameters

Focus on mesh area, vibration mode, frequency and amplitude. Quality screens generate high-frequency vibration perpendicular to mesh holes to disperse materials, reduce clogging and improve screening efficiency and penetration rate.

3. Select Based On Production Capacity

The screen throughput shall match the designed line capacity. Excessive capacity leads to idle equipment and capital waste; insufficient capacity causes long-term overload operation, accelerating part wear and shortening service life. Proper matching realizes efficient and low-consumption production.

4. Select Based On Screening Purposes

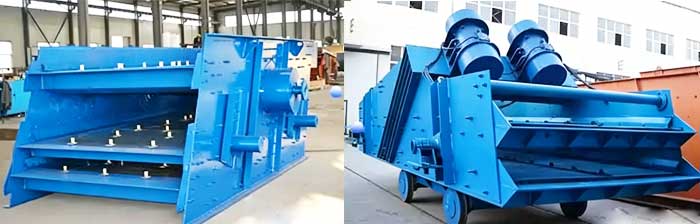

Choose models according to working procedures. Circular vibrating screens suit pre-screening; heavy-duty mining screens apply to crushed material grading; linear screens are ideal for dewatering and medium removal; probability screens work well for mud and sand removal.

5. Select Based On Working Environment

For dusty, humid and intensive continuous operation, adopt screens with wear resistance, corrosion resistance and rigid structure to ensure steady long-term operation.

6. Select Based On Production Process

Match screen surface size, hole shape and mesh specification in line with overall line capacity and screening flow. Mesh aperture determines finished product quality. Larger holes produce higher fineness modulus and lower stone powder content, while smaller holes bring opposite results. Adjust specifications as per finished product standards.
