How To Eliminate Resonance In Circular Vibrating Screen

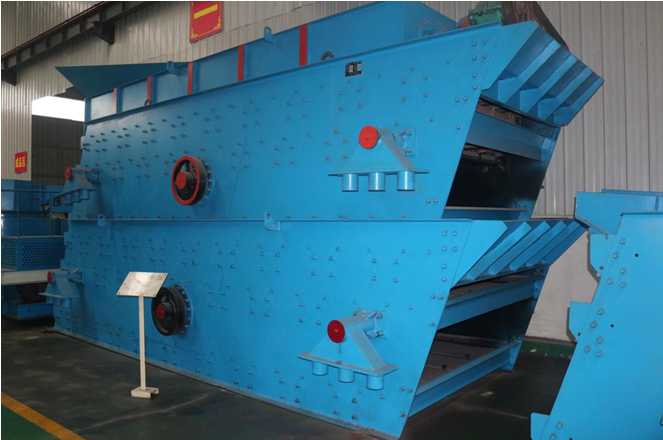

Circular vibrating screens are critical equipment in large-scale sand production lines. However, resonance during operation can cause severe vibration and even equipment damage, threatening production stability.

1. Mechanism of Resonance Generation and Elimination

Resonance occurs when the exciter speed approaches the screen’s natural resonant frequency, leading to a sharp increase in amplitude. The elimination mechanism is as follows:

1. Startup Phase: When the exciter spindle speed is less than twice the resonant speed, the centrifugal moment of the eccentric block on the pin is smaller than the spring moment, resulting in minimal excitation force and stable amplitude. As the speed reaches about twice the resonant speed, the eccentric block is released, generating the required excitation force and amplitude to pass through the resonance zone smoothly.

2. Shutdown Phase: When the exciter speed drops to about twice the resonant speed, the eccentric block is pulled back by the spring, returning the exciter to its balanced position with almost no excitation force. Thus, the screen box does not experience a sudden amplitude increase when passing through the resonant speed, avoiding resonance impact.

2. Optimization Methods for Resonance Elimination

To further reduce resonance risks, the following adjustments and optimizations can be implemented:

1. Adjust Exciter Speed: Set the working speed reasonably based on the equipment’s resonant speed parameters to keep it far from the resonant range, fundamentally avoiding resonance.

2. Optimize Structural Design: Use high-strength materials to enhance screen box rigidity and install vibration damping devices to improve overall equipment stability and reduce resonance probability.

3. Install Vibration Reduction Measures: Add damping pads, shock-absorbing springs, and other components to weaken the vibration transmission path and reduce the impact of resonance on the equipment and foundation.

4. Regular Maintenance and Inspection: Establish a regular inspection mechanism to promptly check for wear and looseness of key components such as eccentric blocks and springs, eliminating potential resonance hazards and ensuring continuous production operation.
