Hydrocyclone Slurry Treatment Machine for Piling Mud

Published: 03/21/2016

Slurry treatment machines are eco‑friendly machinery that have gained considerable attention in recent years. Instead of transporting mud off‑site for treatment as done in the past, the slurry treatment machine processes mud directly on‑site to achieve effective mud purification.

After treatment by this equipment, mud, water and impurities get fully separated. It effectively solves the difficult mud‑disposal problems faced by construction contractors. Water separated from the mud can also meet discharge standards.

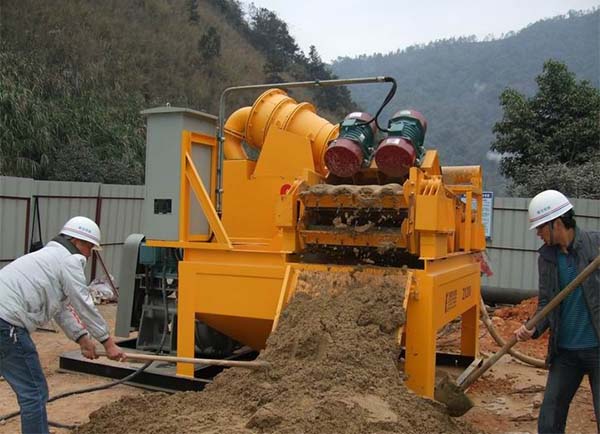

LZZG Hydrocyclone Slurry Treatment Machine Features

1. Large processing capacity, reaching 200-250 m³/h, high purification and sand removal efficiency, and separation particle size 0.074 mm.

2. Simple operation, low failure rate, convenient installation, use and maintenance.

3. Advanced linear vibration method makes the sieved material have a good dewatering effect.

4. Adjustable vibrating screen excitation force, screen surface angle and mesh size make it maintain good screening effect in various formations.

5. The vibrating screen has high screening efficiency and can be adapted to the hole making of various drilling rigs in different formations.

6. Vibration motor has high power, low energy consumption and remarkable energy saving effect.

7. Vibrating screen operates with low noise, which is conducive to improving the working environment.

8. The anti-erosion centrifugal slurry pump has the characteristics of advanced structure, high degree of generalization, reliable operation and convenient assembly and disassembly and maintenance; thicker bearing parts and heavy-duty brackets make it suitable for long-term conveying and strong abrasion, high concentration of slurry.

9. Advanced hydrocyclone with advanced structural parameters has excellent sedimentation index. The material is wear-resistant, corrosion-resistant and light-weight, so it is easy to operate and adjust, durable and economical. Suitable for long-term maintenance-free use under severe working conditions.

10. The innovative liquid level automatic balancing device can not only keep the liquid level of slurry storage tank stable, but also realize the repeated treatment of mud to further improve the purification quality.

11. The unique recoil device can effectively prevent silt slurry from being stored in the slurry tank, thus maintaining the long-term normal operation of the equipment.

Why Choose LZZG Slurry Treatment Machine

Full‑scale mud purification helps stabilize mud performance parameters, lower the risk of drill‑pipe sticking, and boost borehole quality. Efficient soil separation also raises hole‑drilling efficiency.

Meanwhile, recycled mud cuts consumption of mud‑making materials and brings down overall construction costs. Thanks to the closed‑loop mud operation and low‑moisture discharged solids, on‑site pollution can be effectively mitigated.
