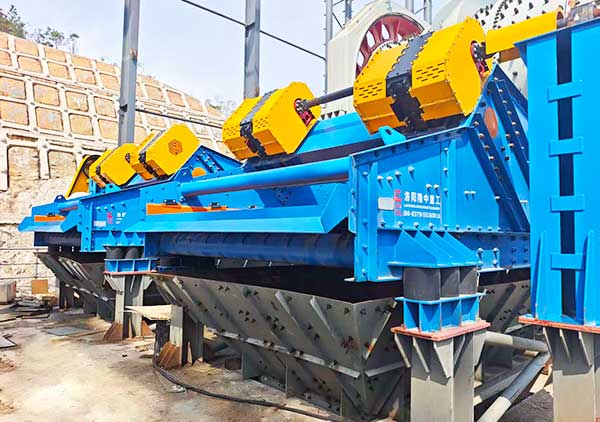

ZK Exciter Vibrating Screen

Overview

The vibration source of the ZK exciter vibrating screen has been upgraded to a box-type exciter, featuring strong synchronization, stable operation, and simple adjustment. Excitation force and direction angle can be easily adjusted by adding/subtracting counterweights or changing their positions.

ZK exciter vibrating screen is suitable for horizontal screening and linear motion screening scenarios, widely used for dry/wet particle size classification of medium/fine materials dewatering and desliming.

Working principle

ZK exciter vibrating screen achieves material grading through periodic vibrations generated by the exciter:

When working, materials are evenly distributed on the screening mesh from the feed inlet. Vibrations cause relative movement of materials on the screen, the fine particles pass through mesh openings, while larger particles remain on the surface. Different particle sizes are discharged from corresponding outlets to complete screening.

Features & Benefits

1. The side panels are made of high-strength structural steel, which makes the overall structure simple and easy to maintain.

2. Using high-strength bolts and vibration equipment specific bearings, the screening machine has a long service life and low power consumption.

3. The exciter adopts high-precision helical gear transmission, with strong excitation force and smooth operation.

Specifications

Model	Feeding Size (mm)	Capacity (t/h)	Screen Panel (mm)	Screen Area (m²)	Power (kw)	Weight (kg)	Overall Size (mm)
ZK1230	≤10	10-20	1200X3000	3.6	3X2	1260	3085X1590X1440
ZK1236	≤10	10-20	1200X3600	4.32	3X2	1400	3680X1590X1600
ZK1530	≤10	30-60	1500X3000	4.5	5.5X2	1850	3080X2500X1600
ZK1536	≤10	30-60	1500X3600	5.4	5.5X2	2300	3200X2490X1800
ZK1836	≤10	60-100	1800X3600	6.48	7.5X2	3580	3760X3080X1990
ZK1842	≤10	60-100	1800X4200	7.56	7.5X2	3900	4370X3080X2000
ZK1848	≤10	60-100	1800X4800	8.64	7.5X2	4220	4790X3065X1960
ZK2442	≤10	80-150	2400X4200	10.08	11X2	4850	4400X3740X1930
ZK2448	≤10	80-150	2400X4800	11.52	11X2	5080	5000X3740X1980
ZK3048	≤10	120-200	3000X4800	14.4	15X2	7470	4960X4520X2220
ZK3060	≤10	120-200	3000X6000	18.0	18.5X2	9100	6160X4520X2220
ZK3648	≤10	150-250	3600X4800	17.28	22X2	10000	4960X5120X2280
ZK3660	≤10	150-250	3600X6000	21.6	22X2	12200	6160X5120X2280
