Location: Home » PRODUCTS » Screening Machine » Three-Axis Horizontal Screen
three-axis-horizontal-screen

Three-Axis Horizontal Screen

Input Size: 0-100mm

Screen Aperture: 5-50mm

Processing Capacity: 50-900t/h

Application Scope: three-axis horizontal screen is suitable for dry and wet screening of coal, mining, and sand and gravel aggregates.

  • Overview

    The three-axis horizontal screen is installed horizontally. The screening machine uses three sets of vibrators as excitation sources, and the motion trajectory of any point on the screening box is a linear ellipse. The material moves in a linear ellipse on the screening surface.

    Three-axis horizontal screen is suitable for dry and wet screening of coal, mining, and sand and gravel aggregates. It combines the advantages of circular vibrating screen that loose materials are not easily blocked, and linear vibrating screen that transports materials quickly and has a low center of gravity.

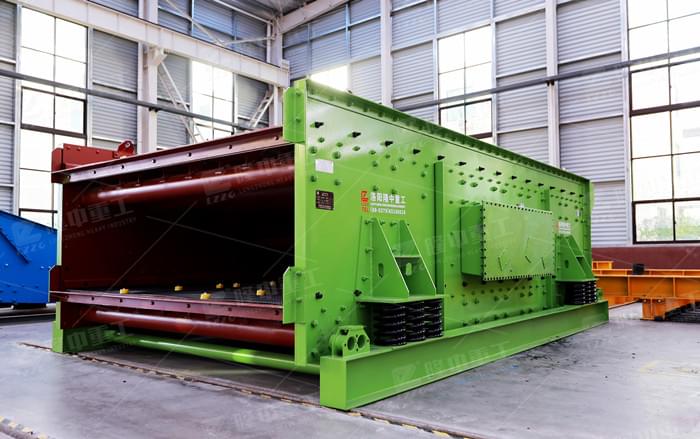

    three-axis-horizontal-screen1

  • Working principle

    The three-axis horizontal screen is composed of screen frame, spring, bottom frame, exciter, transmission device, motor, screen mesh, etc

    When the three-axis horizontal screen is working, the power is transmitted from the motor through a triangular belt to the driving shaft and gear vibrator of the exciter (with a speed ratio of 1), achieving the rotation of the three shafts at the same speed, generating excitation force. The exciter is connected to the screen box with high-strength bolts, resulting in elliptical motion.

    The material moves in a high-speed elliptical motion on the screen surface, quickly layering, passing through the screen, and moving forward to complete the classification of the material.

  • Features & Benefits

    1.Small footprint, compact structure, and a processing capacity 70% higher than that of the same model of vibrating screen.
    2.The vibration amplitude, frequency, and direction angle can be adjusted according to different needs.
    3.The running trajectory of the screening machine is elliptical, with smooth movement and low power consumption.
    4.The material screening is smooth, not easy to block holes, and has good screening performance.

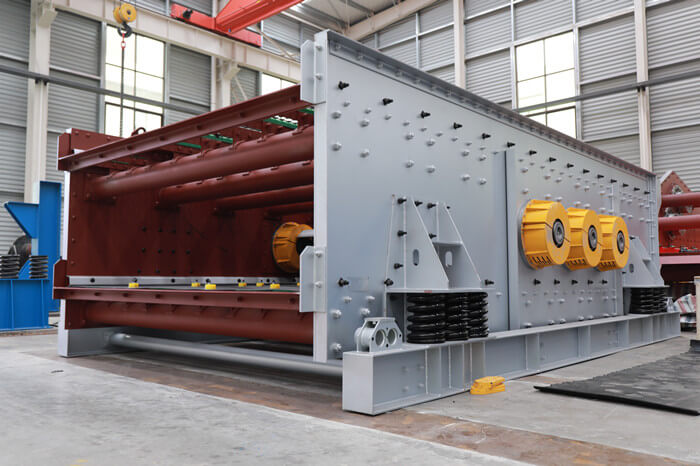

    three-axis-horizontal-screen3three-axis-horizontal-screen4three-axis-horizontal-screen5

  • Specifications

    Model Screen Width (mm) Screen Length (mm) Screen Area(㎡) Screen layers Screen Aperture (mm) Input Size (mm) Capacity (t/h) Power (kw) Excitation Force (KN) Weight (kg) Overall Size(mm)
    1848 1800 4800 8.64 2 5-50 ≤100 50-400 22 35 5000 5900X3100X1700
    1848 1800 4800 8.64 3 5-50 ≤100 50-400 22 40 6000 5900X3100X2000
    1860 1800 6000 10.8 2 5-50 ≤100 50-400 22 40 6000 7100X3100X1700
    1860 1800 6000 10.8 3 5-50 ≤100 50-400 30 45 7000 7100X3100X2000
    2060 2000 6000 12.6 2 5-50 ≤100 50-600 30 50 8000 7100X3300X1700
    2060 2000 6000 12.6 3 5-50 ≤100 50-600 30 60 9000 7100X3300X2000
    2460 2400 6000 14.4 2 5-50 ≤100 100-700 30 60 9000 7100X3700X1800
    2460 2400 6000 14.4 3 5-50 ≤100 100-700 37 70 11000 7100X3800X2100
    2760 2700 6000 16.2 2 5-50 ≤100 100-800 37 70 11000 7100X4300X2000
    2760 2700 6000 16.2 3 5-50 ≤100 100-800 45 80 13000 7100X4400X2300
    3060 3000 6000 18 2 5-50 ≤100 100-900 55 80 13000 7100X4600X2200
    3060 3000 6000 18 3 5-50 ≤100 100-900 55 90 15000 7100X4700X2500
    3090 3000 9000 27 2 5-50 ≤100 100-1000 55 95 16000 10100X4700X2400
    3090 3000 9000 27 3 5-50 ≤100 100-1000 75 105 18000 10100X4700X2700
