SS304 Dewatering Screen

Input Size: 0-10mm

Production Capacity: 0-180t/h

Final Water Content: as low as 12%-15%

Application Scope: sand and gravel yard, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,  metallurgy, etc.

  • Overview

    Belong to the dewatering equipment, but the structure of dewatering screen is different when acting on different material, For example, sand dewatering machine in sand washing production line is different from the tailings dewatering sieve which is commonly used in the concentrating mill.

    This type of stainless steel dewatering screen is borned by the R & D department and through many times testing . with low energy wasting and high efficiency as a whole, only for the special material. Mainly used for quartz sand, potassium feldspar, high acidic or alkaline materials and so on.

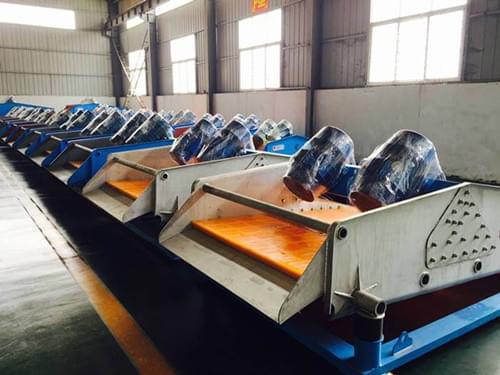

    SS304-dewatering-screen1 (1)

  • Working principle

    Stainless steel dewatering screen is mainly composed of screen box, vibration exciter, supporting system and motor. The machine adopts double motor self-synchronization technology, universal eccentric block and adjustable amplitude vibrator.

    The two unrelated vibrators run synchronously and inversely, and the centrifugal forces produced by the two groups of eccentric masses are superimposed along the vibration direction and counteracted by reverse centrifugation, thus forming a single excited vibration along the vibration direction, which makes the screen box move in a reciprocating straight line.

  • Features & Benefits

    1. The main results are as follows: 1. Relatively small volume, large processing capacity per unit area, convenient process layout.

    2. Suitable for a variety of dehydration needs, 24-hour continuous operation.

    3. High wear-resistant sieve plate has long service life, modular assembly design and convenient replacement.

  • Specifications

    Model Screen area (m²) Power (kw) Capacity (t/h) Feed size (mm) Weight (kg) Overall dimension (L*W*H)(mm)
    TS0918 1.62 2*0.75 10-20 ≤10 1600 1885*1290*1024
    TS0924 2.16 2*0.75 10-20 ≤10 2000 2485*1290*1224
    TS1224 2.88 2*1.5 30-50 ≤10 2300 2485*1590*1324
    TS1230 3.6 2*2.2 30-50 ≤10 2530 3085*1590*1424
    TS1236 4.32 2*2.2 30-50 ≤10 2880 3685*1590*1524
    TS1530 4.5 2*3 50-80 ≤10 3180 3083*1890*1421
    TS1536 5.4 2*3 50-80 ≤10 3300 3683*1890*1601
    TS1836 6.48 2*4 100-150 ≤10 3750 3715*2466*1855
    TS1842 7.56 2*4 100-150 ≤10 4380 4315*2466*2044
    TS1845 8.1 2*4 100-150 ≤10 4680 4515*2446*2135
    TS1848 8.64 2*6.5 100-150 ≤10 4960 4915*2466*2244
    TS2442 10.08 2*7.5 130-180 ≤10 5130 4315*3085*2042
    TS2445 10.8 2*7.5 130-180 ≤10 5450 4615*3085*2140
    TS2448 11.52 2*7.5 130-180 ≤10 5880 4915*3085*2242
