Dewatering Vibrating Screen

Input Size: 0-10mm

Production Capacity: 0-250t/h

Final Water Content: as low as 12%-15%

Application Scope: sand and gravel yard, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,  metallurgy, etc.

  • Overview

    Dewatering vibrating screen is specifically designed for mineral screening and dewatering processes, which can realize the separation of different size particles and dehydration to conveyable discharge cake of material at one screen panel and at the same time. Screening and dewatering is a process in which water and materials detached when the material passes through screen surface in a thin layer.

    Dewatering vibrating screen is ideal for applications in sand, gravel, aggregate, frac sand, mineral, ore, coal, tailing, clay, etc. The screening mesh is usually 0.16mm, other mesh all can be customized to meet your needs.

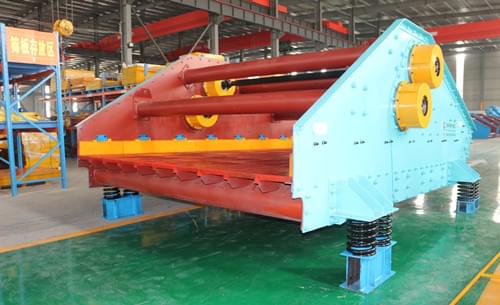

    dewatering-vibrating-screen5

  • Working principle

    Two mutually unconnected vibrators that driven by the tape coupling shaft for synchronous reverse operation, and the centrifugal forces generated by the two sets of eccentric mass are superimposed along the component of vibration direction, and reverse centrifugally canceled, thereby forming a single excitation vibration to make the dewatering vibrating screen as a reciprocating linear motion.

    The concentrated materials are continuously threw up and down on the screen, and the materials are loosen and crashed to the sieve, the small size materials are filtered away from the sieve holes. Finally it reaches the aim of classifying, dehydrating and desliming.

  • Features & Benefits

    1.Effectively separate several different size particles.
    2.Water content of final products as low as 12%-15%.
    3.45°angle install increases the screening and dewatering area.
    4.High efficiency, large processing capacity and strong vibrating force.
    5.Adjustable vibrating frequency to meet different requirements.
    6.Torsional shear type high strength bolts are used between side plates and beam.
    7.Polyurethane screen with better elasticity and less blocks. The PU side push plates protect the equipment from the rushing material and guard the long life of the whole device.
    8.Simple structure and easy operation and maintenance.

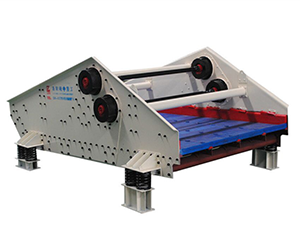

    dewatering-vibrating-screen1dewatering-vibrating-screen2dewatering-vibrating-screen3

  • Specifications

    Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Screen Area (m²) Power (kw) Overall Size (mm)
    ZSD1530 ≤10 30-60 1500*3000 4.5 3.0*2 3080*2500*1600
    ZSD1842 ≤10 60-100 1800*4200 7.56 7.5*2 4370*3080*2000
    ZSD1848 ≤10 60-100 1800*4800 8.64 7.5*2 4790*3065*1960
    ZSD2442 ≤10 80-150 2400*4200 10.08 11*2 4400*3740*1930
    ZSD2448 ≤10 80-150 2400*4800 11.52 11*2 5000*3740*1980
    ZSD3048 ≤10 120-200 3000*4800 14.4 15*2 4960*4520*2220
    ZSD3060 ≤10 120-200 3000*6000 18 18.5*2 6160*4520*2220
    ZSD3660 ≤10 150-250 3600*6000 21.6 22*2 6160*5120*2280
