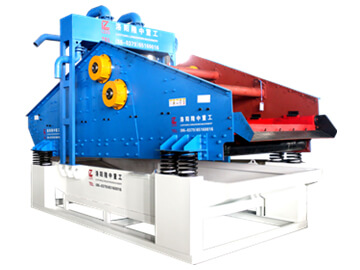

No.6 Fine Sand Recycle System

Input Size: 0-10mm

Output Size: ≥0.074mm

Production Capacity: 0-250t/h

Recycling Rate: >95%

Final Water Content: as low as 12%-15%

Application Scope: sand and gravel yard, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,  metallurgy, etc.

  • Overview

    In the past few years, we improve core technical, select new processing methods and absorb different sites working situation, and successfully make No.6 sand recycling system as our LZZG brand. It is also called as “dewatering type sand recycling system”.

    No.6-fine-sand-recycle-system2No.6-fine-sand-recycle-system1

  • Working principle

    About No.6 sand recycling system, we still choose polyurethane screen as its main screening part, and add recycling part on TS dewatering screen.

    Sand after sand washer is fed onto polyurethane screen for dewatering, waste sand water through steel chute or rubber pipe in water tank and extracted by slurry pump into high pressure sediment separator, fine sand 0.16-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.

  • Features & Benefits

    1. Dewatering type sand recycling system, sand grading is better.
    2. Recycling 0.16-3mm fine sand.
    3. Recycling rate reaches above 95%.
    4. The water content of final sand is within 12%-15%.
    5. Compact structure and install easily.

  • Specifications

    Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Hydrocyclone (mm) Power (kw) Overall Size (mm)
    LZ1530-65 ≤10 30-60 1500*3000 300*2 36 3300*5250*3000
    LZ1842-75 ≤10 40-80 1800*4200 350*2 48 4600*5560*3520
    LZ2442J-120 ≤10 100-150 2400*4200 300*4 82 4600*6250*3600
    LZ3048J-140 ≤10 120-200 3000*4800 350*4 104 5400*7000*4200
    LZ3060J-180 ≤10 120-200 3000*6000 300*6 127 6600*7000*4200
    LZ3660J-180 ≤10 150-250 3600*6000 300*6 134 6600*7000*4800
