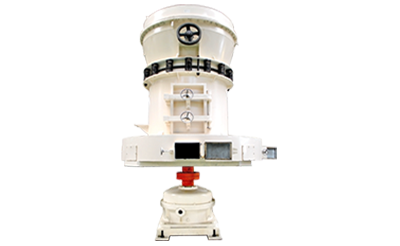

Raymond Mill

Feed Size: 20-30mm

Production Capacity: 1.2-11t/h

Application Scope: small and medium-sized mines, chemical industry, building materials, metallurgy, refractory, pharmaceutical, cement and other industries.

Processing Materials: various non flammable and explosive ores with Mohs hardness below 7 and humidity below 6%, such as gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, iron oxide red, iron ore, etc.

  • Overview

    Raymond mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements.

  • Working principle

    load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded.After being grinded, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding. The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product.

    In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate; since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work in negative pressure, the increased air flow is guided to the deduster and sequentially to the atmosphere after purification.

  • Features & Benefits

    1. Raymond mill is vertical and takes small room. It is an independent production system from feeding material to final product.

    2. Fineness of final product is even and the passing rate can be up to 99%, which is incomparable by other mills.

    3. The transmission device of the main frame uses close gear and pulley, which runs smoothly and stably.

    4. The important part is made by qualified steel and wearing parts by high qualified wearable material.

    5. As the electric control system is centralized, no people are needed in operating room, and it is easy to maintain.

  • Specifications

    Model 3R2115 3R2615 3R2715 3R3015 4R3016 4R3216
    Grinding Roller Number(pcs) 3 3 3 3 4 4
    Diameter mm) 210 260 270 300 300 320
    Height(mm) 150 150 150 150 160 160
    Grinding Ring Diameter(mm) 726 865 884 965 990 1073
    Height(mm) 150 150 150 150 160 160
    Feeding Size(mm) <15 <15 <15 <15 <20 <25
    Output Size(mm) 0.613-0.044 0.613-0.044 0.613-0.044 0.613-0.044 0.613-0.044 0.613-0.044
    Capacity(t/h) 0.28-1.8 0.35-2.8 0.40-3.4 0.45-3.7 0.6-4.5 1.0-5.2
    Motor Power(kw) 28.2 35.7 42.7 55 55 72.5
