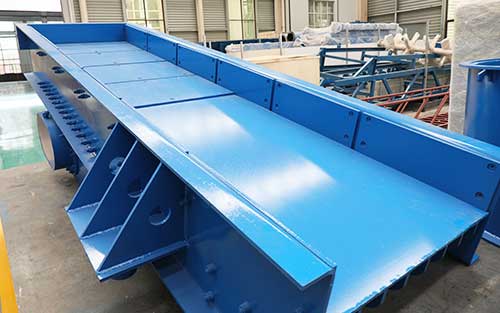

GZG Vibrating Feeder

Overview

GZG vibrating feeder can feed block and granular materials from the hopper to the receiving device evenly, regularly and continuously. In the sand and gravel production line, it can feed the crushing machinery evenly and perform coarse screening of the materials.

GZG vibrating feeder is widely used in metallurgy, coal mining, mineral processing, building materials, chemical industry, abrasive and other industries.

Working principle

During operation, the vibration motor drives the exciter to cause the feeding chute to undergo periodic linear reciprocating vibration in an inclined direction. When the vertical component of the vibration acceleration is greater than the gravitational acceleration, the material is thrown up and jumps forward along a parabolic trajectory, and then continues to be transported forward under the combined action of inertia and gravity.

Features & Benefits

1. High efficiency, large feeding capacity and uniform feeding
2. Stable vibration, reliable operation, strong adaptability to various materials
3. Simple structure, small size, easy installation and maintenance

Specifications

Model	Trough Dimensions B×L×H (cm)	Feed Rate (t/h)		Maximum Feed Particle Size (mm)	Double Amplitude (mm)	Vibration Frequency (times/min)	Rated Voltage (V)	Rated Current (A)	Power (kW)	Weight (kg)
Model	Trough Dimensions B×L×H (cm)	Horizontal	-10°	Maximum Feed Particle Size (mm)	Double Amplitude (mm)	Vibration Frequency (times/min)	Rated Voltage (V)	Rated Current (A)	Power (kW)	Weight (kg)
GZG30-80	30×80×15	30	40	100	4	1450	380	0.87	2×0.25	180
GZG40-90	40×90×20	40	50	100	4			0.87	2×0.25	205
GZG50-100	50×10×20	60	80	150	4			0.87	2×0.25	230
GZG60-100	60×100×20	100	150	200	4			1.76	2×0.55	370
GZG70-100	70×100×25	120	170	200	4			1.76	2×0.55	390
GZG80-120	80×120×25	160	230	250	4			2.17	2×0.75	560
GZG90-150	90×150×25	180	250	250	4			2.17	2×0.75	610
GZG100-150	100×150×25	270	380	300	4			3.18	2×1.10	760
GZG110-150	110×150×25	300	420	300	4			3.18	2×1.10	840
GZG125-160	125×160×30	450	650	350	4			3.80	2×1.50	920
GZG130-160	130×160×30	480	670	350	4			3.80	2×1.50	1040
GZG150-180	150×180×30	720	1000	500	4			5.57	2×2.20	1420
GZG180-200	180×200×37.5	900	1200	500	4	960		9.37	2×3.70	2350
GZG200-200	200×200×40	1000	1400	500	4			9.37	2×3.70	2700
GZG200-240	320×240×50	1600	2000	500	4			13.60	2×5.50	3500
