Overview

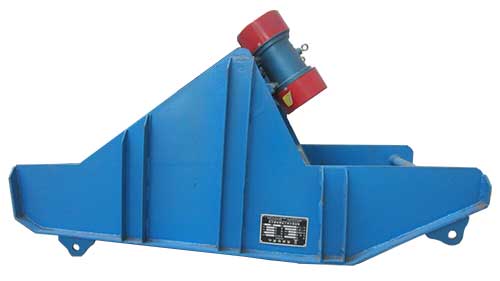

GZY Vibrating Feeder is designed for coal, ores and aggregates conveying and feeding with particle sizes of 0–300mm. As a dedicated feeding apparatus for coal and mining operations, GZY vibrating feeder excels in handling viscous materials with high moisture content and significant clay inclusion.
GZY Vibrating Feeder finds extensive application across industries including coal, metallurgy, power generation, chemicals and building materials etc.
-
Working principle
GZY vibrating feeder is driven by a Y-series general-purpose motor. The motor is connected to an eccentric block via an elastic rotor shaft, which rotates in opposite directions in a self-synchronized manner, generating centrifugal force to form the vibration source. The motor body does not participate in the vibration (non-vibrating design) and only transmits power through the drive box-type vibrator.
When working, vibrating force propels the material along a pre-set vibrating angle (typically 20°–30°) in a projectile-like forward motion, achieving continuous and uniform conveying. The vibration frequency can be flexibly controlled by adjusting the motor speed or the mass of the eccentric blocks.
-
Features & Benefits
- High adaptability, specifically designed for high-moisture, high-viscosity materials.
- High throughput, with a maximum capacity of 200–600 tons per hour (depending on model and inclination settings).
- Low energy consumption, with dynamic load reduced to 30%–50% of traditional equipment.
- Box-type vibrator structure with vibration-damping springs, noise level ≤85 dB(A).
- Modular vibrator design allows maintenance without disassembling the entire machine.
- Adjustable inclination angle, by adjusting the installation angle of the feed chute (0°–10°), the conveying capacity can be infinitely adjusted.
-
Specifications
Model Feed Size (mm) Installation Angle Double Amplitude (mm) Vibration Frequency (r/min) Electric Motor (kw) Feeder Weight (Kg) Chute Gate Weight (Kg) GZY0510 0-200 0-10° 4-8 940 2.2 480 510 GZY0815 0-250 0-10° 4-8 940 2.2 770 770 GZY1015 0-300 0-10° 4-8 940 2.2 1035 1120 GZY1020 0-300 0-10° 4-8 960 4 1120 1180 -
