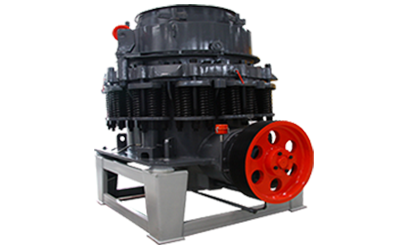

CS Series Cone Crusher

CS cone crusher is a kind of high performance spring cone crusher, which is based on the principle of laminated crushing and the concept of more breaking and less grinding.

Application Scope: gravel yard, mining, coal mining, concrete mixing station, dry powder mortar, power plant desulfurization, quartz sand, etc

Process Materials: pebble, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc

  • Overview

    Comparing with other kinds of crushers, CS Series spring cone crusher is quite excellent in hard material crushing and the final product has good sharp.

  • Working principle

    CS cone crusher is mainly composed of frame, fixed cone assembly, moving cone assembly, spring mechanism, bowl type shaft frame and transmission, and its auxiliary part is composed of electrical system, lubrication system and hydraulic cavity cleaning system.

    When working, the motor drives the eccentric sleeve to rotate through the triangle belt, large pulley, transmission shaft, small bevel gear and large bevel gear, and the broken cone axis rotates and swings under the forced action of the eccentric shaft sleeve

    The surface of the crushing wall is sometimes close to or away from the surface of the mortar wall, so that the material is continuously impacted, squeezed and bent in the annular crushing cavity composed of fixed cone and moving cone.

    After repeated extrusion, impact and bending, the material is crushed to the required size and discharged through the outlet.

  • Features & Benefits

    1.High yields and high grade final products.

    2.With grease seal and upstage sealing element imported from Japan, provide sturdy guarantee for long-playing stable operation of machine.

    3.Overload protective system can effectively ensure safety of crusher.

    4.Easy to control discharging size by using different crushing cavity and adjusting device.

  • Specifications

    Model Movable Cone Diameter mm (inch) Chamber Style Opening Side Closed Side   Discharging Opening (mm) REV (r/min) Power (kw) Capacity (t/h) Machine Size (mm)
    Max.Feeding (mm)
    CSB75 900 (3′) medium 83 102 9-22 580 75 45-91 2821×1880 ×2164
    coarse 159 175 13-38 59-163
    CSD75 914 (3′) fine 13 41 3-13 580 75 27-90 2821×1880 ×2410
    medium 33 60 3-16 27-100
    coarse 51 76 6-19 65-140
    CSB160 1295(4 1/4′) fine 109 137 13-31 485 185 109-181 2800×2342 ×2668
    medium 188 210 16-31 132-253
    coarse 216 241 19-51 172-349
    CSD160 1295(4 1/4′) fine 29 64 3-16 485 160 36-163 2800×2342 ×2668
    medium 54 89 6-16 82-163
    coarse 70 105 10-25 109-227
    CSB240 1650(5 1/2′) fine 188 209 16-38 485 240 181-327 3911×2870 ×3771
    medium 213 241 22-51 258-417
    coarse 241 268 25-64 299-635
    CSD240 1650(5 1/2′) fine 35 70 5-13 485 240 90-209 3917×2870 ×3771
    medium 54 89 6-19 136-281
    coarse 98 133 10-25 190-336
    CSB400 2134(7′) fine 253 278 19-38 435 400 381-726 5200×4300 ×4700
    medium 303 334 25-51 608-998
    coarse 334 369 31-64 870-1400
    CSD400 2134(7′) fine 51 105 5-16 435 400 190-408 5200×4300 ×4700
    medium 95 133 10-19 354-508
    coarse 127 178 13-25 454-599
