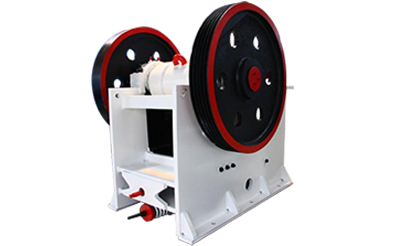

PE Jaw Crusher

Jaw crusher has the advantages of large crushing ratio, uniform product size, simple structure and convenient maintenance. Jaw crusher and cone crusher, impact crusher, sand machine, etc. constitute a complete sand and gravel production line.

Application Scope: sand and stone plant, mining, coal mining, concrete mixing station, dry powder mortar, power plant desulfurization, quartz sand, etc

Process Materials: pebble, granite, basalt, iron ore, limestone, quartz, diabase, construction waste, iron ore, gold mine, etc

  • Overview

    Jaw Crusher is a kind of Stone crusher, and jaw crusher is also called Rock crusher. This series of Jaw crushers have many advantages which mainly used in breaking a variety of ore and the medium-size chunk of materials. The compression strength of the materials to be crushed is less than 320MPA, it can be divided into coarse crusher and fine crusher.

    We have all specification kinds of the products, and its feedstock size is 125mm-750mm. It is the first choice for Stone crusher plant; Primary jaw crusher is widely used in mining, metallurgy, building materials, roads, railways, water conservancy and chemical industries, etc.

    Jaw crushers / Jaw breakers operating environment

    When in the process of the great broken stones broke into small stones, the first crusher is often referred to as ‘master’ crusher, the longest history and most solid crusher is jaw crusher. When feed to jaw crusher, materials from the top of the entrance into the broken room with tooth broken, the tooth broken tremendous force the material to the top of the wall, it will be broken into smaller stones.

    Supporting the tooth movement is an eccentric shaft. This axis runs through the fuselage frame. Eccentric movement is usually arisen by fixed at both ends of the flywheel axis. Flywheel and eccentric support bearing is often using spherical roller bearings. Bearing working environment is extremely harsh. Bearings must support enormous impact loadabrasive water and high temperature. Though the working environment is extremely harsh, the jaw crusher still can work very reliably. this is a key element to ensure the productivity.

  • Working principle

    The main structure of the Jaw crusher are composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate ,adjustable gap screw, offsetting spring, fixed jaw plate. The wrist plate also has the effect of guarding.

    This Jaw crusher’s crushing style is the type of driving extrusion. The motor drives the belt and belt pulley to make the moveable jaw move through the eccentric shaft. When movable jaw is rising ,the included angle between the wrist plate and movable jaw become bigger to drive the movable plate to be close to the movable plate.

    At the same time the material is squeezed and rubbed, rolled to achieve multiple crushing; When movable jaw is descending, the included angle between the wrist plate and movable jaw becomes smaller. Now the crushed material is discharged from the crushing cavity, with the continuous rotation of the motor, the movable jaw crushing and discharging the material periodically to realize batch production.

  • Features & Benefits

    1) High efficiency and low operation cost;
    2) Flexible capacity; Over loading protection;
    3) Simple structure and easy to operate;
    4) Easy replacement of wearing parts;
    5) Long service life; High reliability;
    6) Wide range of choices;Alternative ordinary and hydraulic types.

  • Specifications

    Model Feed opening (mm) Max feed size(mm) Capacity (t/h) Power (kw) Weight (t) Overall dimension (mm)
    PE150×250 150×250 125 1-3 5.5 1.5 896×745×935
    PE250×400 250×400 200 5-20 15 3 1430×1310×1340
    PE400×600 400×600 350 15-60 30-37 7 1700×1732×1653
    PE500×750 500×750 425 40-110 45-55 12 2035×1921×2000
    PE600×900 600×900 480 90-180 55-75 17 2290×2206×2370
    PE750×1060 750×1060 630 110-320 90-110 29 2655×2302×3110
    PE900×1200 900×1200 750 220-450 110-132 52 3800×3166×3045
    PE1000×1200 1000×1200 850 315-550 110-132 57 3200×3050×2950
    PE1200×1500 1200×1500 950 400-850 160 88 4200×3750×3820
    PEX150×750 150×750 125 5-16 15 3.8 1200×1500×1200
    PEX250×750 250×750 210 15-30 22-30 5 1667×1545×1020
    PEX250×1000 250×1000 210 15-50 30-37 7 1550×1964×1380
    PEX250×1000 250×1200 210 20-60 37-45 8.5 2192×1900×1950
    PEX300×1300 300×1300 250 20-120 75 11 2720×1950×1600
