Desanding Plant

What is Desander?

Desander is hydrocyclone-type equipment, which widely used for solid control plant with a set of hydrocyclones that separate sand and silt from the drilling fluids in drilling rigs.

Why Choose Desander?

Efficient solids removal is essential for trouble-free plant operation. Some abrasive solids can't be removed by shake screens, but the desander removes the 45-74 micron solids perfectly. Usually, desanders are installed before desilter, but after the shale shaker and the degasser. Desanders, desilters and the combination of them called desanding plant or mud cleaners.

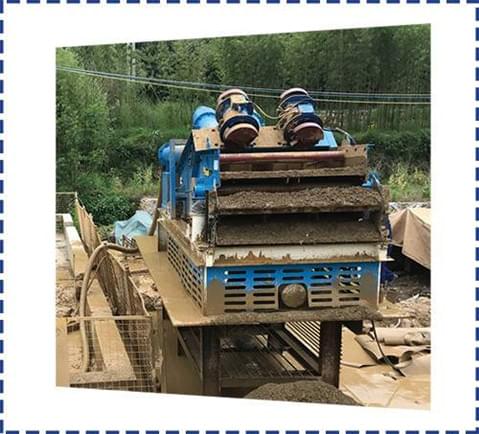

Desander plant

How Does It Work?

When working, mud will be pumped out by high-pressure slurry pump from mud pit, then the mud goes into the vibrationg screen which equiped with pu screen panels for bigger solids separation. Usually, according the mud flow requirement, vibrating screen equip with 2 screen panels or 3screen panels with different screen mesh size for further separation. Solids particles will discharge out through screen panels outlet and clean mud drop into mud tank.

A centrifugal pump is used to pump the mud from mud tank into the hydrocyclones. Heavier solid particles enter the vibrating screen through the nozzle, and lighter clean mud flows out through the overflow outlet of the hydrocyclones. Hydrocyclones can perform the finest cut according to the solids size.

Basically two types of desanders: one cyclone desander and double cylones desander.

MAIN APPLICATIONS

application1

1- By fully purifying slurry, it is favorable to control slurry index, reduce drill stuck phenomena, and improve drilling quality.

application2

2- By thoroughly separating the slag and soil, it is favorable to enhance drilling efficiency.

application3

3- By realizing the repetition use of slurry, it can save slurry making materials and thus reduce the construction cost.

application4

4- By adopting the technique of close cycle purification and low water content of removed slag, it is favorable to reduce environmental pollution.

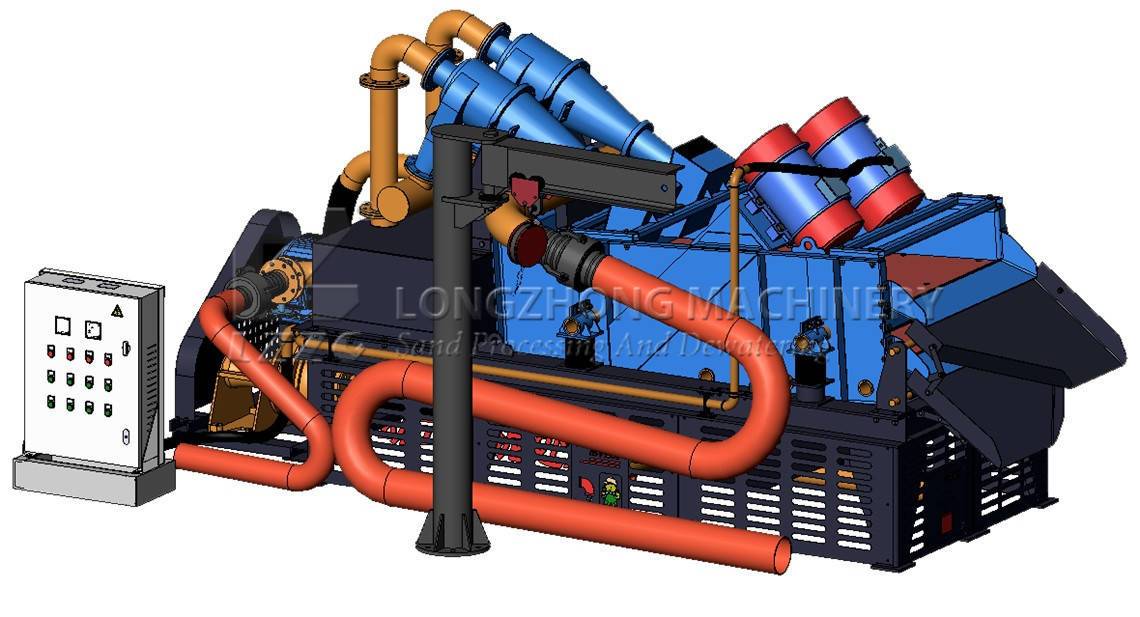

FEATURE

LZ patent desanding plant is designed on the base
of absorbing world advanced technology and combining with the domestic applications of the desander.

  • High mud handling capacity, sand can be removed efficiently.
  • The oscillating screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance.
  • Energy saving efficiency is significant since the power consumption of the oscillating motor is low.
  • The abrasion and corrosion resisting slurr pump has advantages such as advanced centrifugal designing, optimal structure, stable operation and convenient maintenance.
desander plant
  • Slag charge screened by advanced straight-line oscillating system is effectively dewatered.
  • The hig screening efficiency of the machine can excellently support drillers raise bore and advance in different strata.
  • Low operation noise of oscillating screen is favorable to improv the working condition.
  • The thick, abrasion resisting parts and special designed bracket enable the pump to convey corrosive and abrasive slurry with high density.
Features of desanding plant icon

SPECIFICATIONS

Model Capacity (t/h) Feeding size (mm) Screen size (mm) Cyclone Power (kw) Weight (kg) Dimension (mm)
JH-FX40 10-30 ≤10 900*1800 200 13.2 2500 4900*2527*3100
JH-FX60 10-30 ≤10 900*2400 250 13.2 2982 5500*2527*3100
JH-FX80 30-60 ≤10 1200*2400 300 19.4 3949 5572*2827*3134
JH-FX200 60-100 ≤10 1500*3000 350 24.5 4896 5800*3400*3500

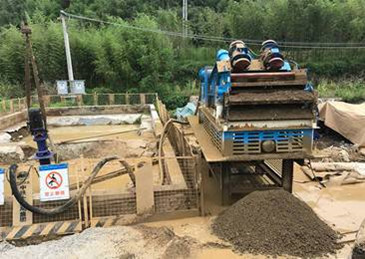

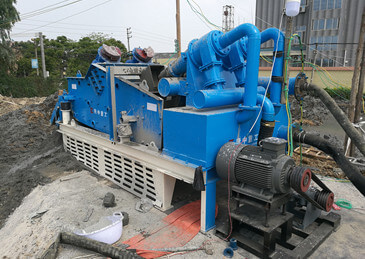

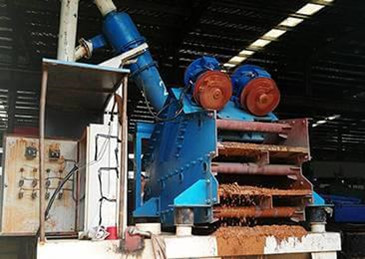

CASES
