Overview

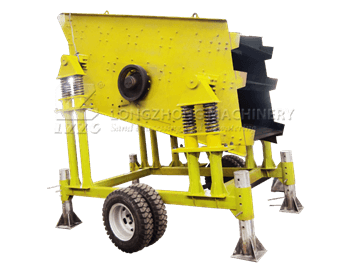

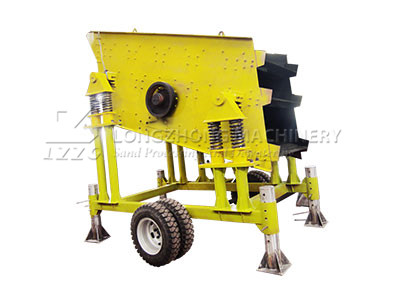

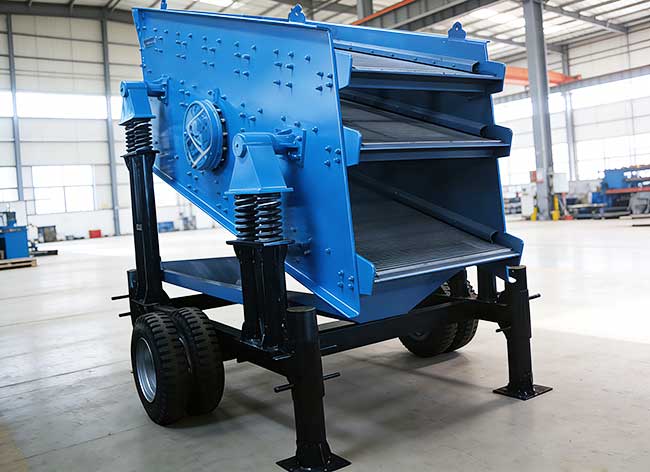

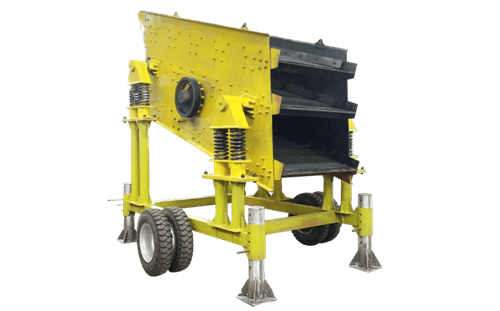

Tire-type movable vibrating screen is a core screening equipment in mining, sand & aggregate production, and construction waste treatment. It deeply integrates the traditional fixed three-deck circular vibrating screen with a towable mobile chassis.
No concrete foundation is required; it can be directly towed by a trailer for site transfer, making it ideal for open-pit mines, temporary construction sites, multi-site rotation operations and other scenarios. It is mainly used for multi-stage classification, impurity removal and dewatering of materials such as ore, sand and gravel, and construction waste.
-
Working principle
Movable vibrating screen can be quickly relocated by a tractor. When working, the mechanical support legs are lowered to lift the equipment and lift the tires off the ground, isolating vibration impact on the chassis.
After materials enter the screening box from the feed end, they are loosened and stratified under vibration. The 3-layer screening surfaces finally discharge finished products of different particle sizes, realizing single feeding and three-stage classification.
-
Features & Benefits
1. Flexible mobility, with site transfer efficiency 5–10 times higher than fixed screening equipment.
2. Equipped with 3-layer high-strength wear-resistant screen mesh, capable of withstanding long-term impact from high-volume and high-hardness materials.
3. Integrated design requires no on-site installation or commissioning, reducing labor and infrastructure costs.
4. Can form a complete mobile crushing and screening production line with mobile jaw crushers, mobile cone crushers, mobile impact crushers and other equipment for flexible applications.
-
Specifications
Model Sieve layer Sieve area (m²) Mesh size (mm) Feed size (mm) Capacity (t/h) Motor power (kw) Weight (kg) Dimension (mm) 2YA1230 2 3.6 5-50 0-200 0-80 5.5 2802 3157*1860*870 3YA1230 3 3.6 5-50 0-200 0-80 7.5 3106 3157*1860*1210 2YA1848 2 8.64 5-80 0-200 0-200 18.5 5463 5200*2500*1300 3YA1848 3 8.64 5-80 0-200 0-200 18.5 5985 5200*2500*1880 2YA2460 2 14.4 5-100 0-200 0-300 30 8693 6500*3000*1300 3YA2460 3 14.4 5-100 0-200 0-300 30 9000 6500*3000*1899 2YA3070 2 21 5-100 0-200 0-300 45 13861 7500*3000*1300 3YA3070 3 21 5-100 0-200 0-300 45 15000 7500*3000*1899 -
