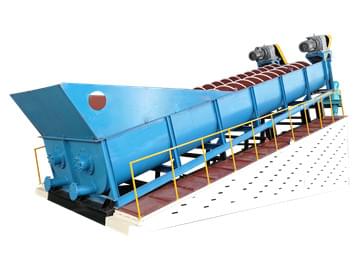

LSX screw sand washing machine

LSX
  • Product info
  • Technical

Brief introduction

Base on years’ experience and technology, LSX spiral sand washing machine is designed to provide bigger capacity and higher cleaning level than traditional one. It is also called “stone washing machine” as its input material size is at most 30mm. Now it is widely used for cleaning materials in quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.


Working principle

It is composed of the electric motor, big and small belt pulleys, triangle belt and gear reducer. The sand washer adopts inclination of 15 degree. Under the water tub, three weir plates form the sediment pool. The spiral head is immersed in this pool, and the spiral is driven by electric motor through reducer rotating continuously. The fresh water is feeded from porous plate at bottom of sediment pool, and the washed sand is discharged on the top side and delivered by belt conveyor.



Features

1. Three functions: cleaning, dewatering and grading.
2. Cleaning and upward conveying at the same time.
3. Low water consumption.
4. Impellers use wear resisting plate or polyurethane material so as to reduce the running cost.
5. Designed according to low volume and low investment.

Specifications
Model Spiral diameter (mm) length of tub(mm) Feed size (mm) Capacity (m³/h) Speed of screw (r/min) Motor Power (kw) Water consumption (m³/h) Weight (t) Overall dimension (L×W×H) (mm)
LSX508 508 6705 ≤10 20 38 5.5 6-60 2.67 8000×2434×1430
LSX610 610 7225 ≤10 40-50 32 7.5 6-63 3.8 8000×2050×1400
LSX762 762 7620 ≤10 50-75 26 11 9-63 5.23 8545×2550×3862
LSX-920 920 7585 ≤10 100 21 11 10-80 6.2 8420×2180×3960
2LSX-920 920 7585 ≤10 200 21 2*11 20-160 11.5 8420×3970×3960
LSX-1120 1120 9750 ≤10 175 17 18.5 20-150 10.9 10770×3950×4860
2LSX-1120 1120 9750 ≤10 350 17 2*18.5 40-300 17.8 10770×5260×4860
