Location: Home » PRODUCTS » Sand Processing Equipment » Trommel Type Sand Washer
trommel-type-sand-washer

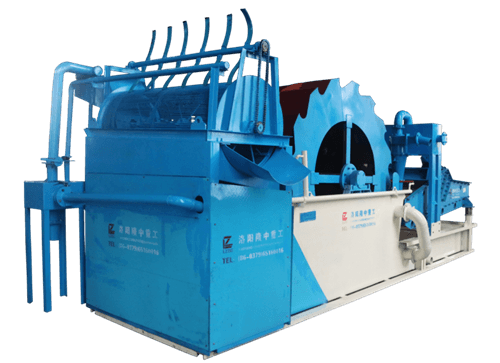

Trommel Type Sand Washer

Input Size: 0-10mm

Output Size: ≥0.074mm

Processing Capacity: 0-250t/h

Main Features: screening firstly, then washing, dewatering and fines recycling

Process Materials: crushed sand, river sand, lake sand, sea sand, gravel, silica sand, coal, concrete aggregate, granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore, etc.

  • Overview

    1.mining, aggregate processing, piling mud, river dredging, city construction waste incineration, ceramic raw material, silica sand production and various kinds of metal ores, tailings disposal and other industries.

    trommel-type-sand-washer1

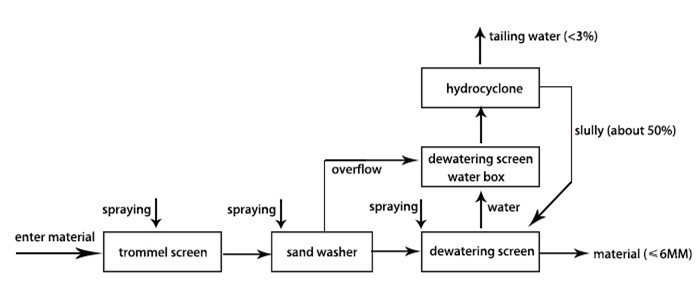

  • Working principle

    Compact-sand-washer-with-trommel-screen

    *Screening: The Trommel Screen is also called rotary screen or drum screen, which screening the material into different size.

    *Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.

    *Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.

    *Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.

  • Features & Benefits

    1.Flexibility, high production rates, serviceability and low maintenance.
    2.Compact structure, saving land area.
    3.High efficiency and cost saving.

  • Specifications

    Model Capacity (t/h) Roller Size (mm) Impeller Size (mm) Hydro-cyclone (mm) Screen Panel (mm) Power (kw) Weight (kg) Overall Size (mm)
    SX10-18-55-1224 20-40 φ1000 1800*800 250*2 1200*2400 32.4 7200 6800*4980*2950
    SX10-26-65-1530 30-60 φ1000 2600*1200 300*2 1500*3000 43 9600 7450*5600*3050
    SX12-30-75-1842 40-80 φ1200 3000*1600 350*2 1800*4200 59 14600 4800*5800*3300
    SX12-30-75-1842J 60-100 φ1200 3000*1600 350*2 1800*4200 63 16850 4800*5800*3300
    SX12-30-120-2442J 80-120 φ1200 3000*1600 300*2 2400*4200 93 18600 4800*6200*3300
    SX15-36-120-2442J 100-150 φ1500 3600*2000 300*4 2400*4200 100.5 22600 5800*6200*4000
    SX18-36-140-3048J 120-200 φ1800 3600*2400 350*4 3000*4800 130 25720 6700*7200*4600
    SX24-42-180-3660J 160-250 φ2400 4200*3000 300*6 3600*6000 171 34300 6700*7200*4600
