Rotary Trommel Scrubbers

Max Feeding Size: 0-300mm

Output Size: 0.075mm-0.4mm

Processing Capacity: 0-500t/h

Application Scope: sand and gravel plant, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,  metallurgy, etc.

  • Overview

    LZZG rotary trommel scrubbers are cylindrical drum type stone scrubbers. Which are mainly used for cleaning, desliming of gravels, aggregates, sandstone and ore, espical lump ores that are hard to clean.

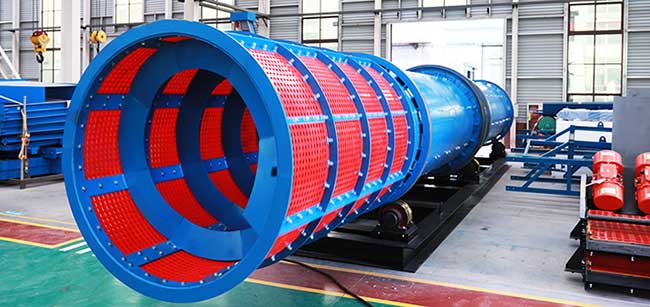

    LZZG rotary drum scrubber has a large-sized feed materials ability(materials within 0-300mm), sludge content of washed aggregates is less than 0.5%, the water content is less than 2%, and the ore washing efficiency is about 98%. LZZG rotary trommel scrubbers divided into two types: cylinder type and cylinder +trommel screen type.

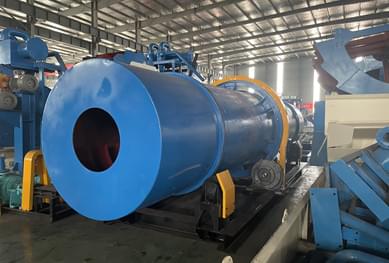

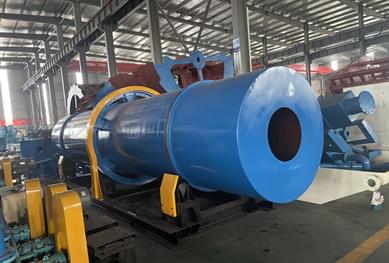

    rotary-trommel-scrubber1rotary-trommel-scrubber2

  • Working principle

    When working, the cylindrical drum supported by 4 trunnion rollers rotates at low speed driven by motor. Aggregates containing mud and stone powder enters the rotating drum from inlet, lifted and dropped by wear-resistant rubber liners installed in the drum continuously, and scrubbered repeatedly by forward or reverse water flow.

    After continuous scrubbering action, the cleaned gravels are discharged after being screening and dewatering through the discharge end drum screen, and the waste water containing sludge flows out through the perforated baffle of the inlet or outlet.

  • Features & Benefits

    1.Designed for large-sized gravels, clays and sand.
    2.high power scrubbing, high-capacity and high-retention.
    3.Rotary speed adjustable.
    4.Long drum design with more vigorous scrubbering for complete separation.

  • Specifications

    Model Maximum feed size (mm) Cylinder diameter (mm) Cylinder length (mm) Drum speed (r/min) power (kw) Capacity (t/h)
    GTX1530 50 1500 3000 30 55 70-140
    GTX1836 80 1800 3600 25 75 120-200
    GTX2145 150 2100 4500 21 110 180-250
    GTX2450 200 2400 5000 18 160 230-300
    GTX2760 250 2700 6000 16 220 280-420
    GTX3075 300 3000 7500 15 370 400-500
