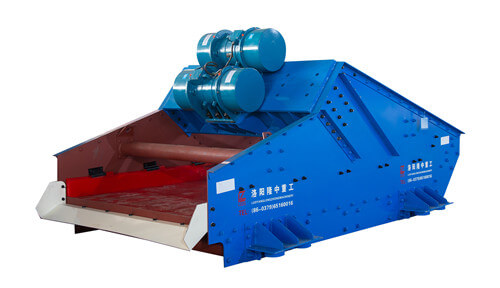

Ts dewatering screen

Tsscreen
  • Product info
  • Technical

Brief introduction

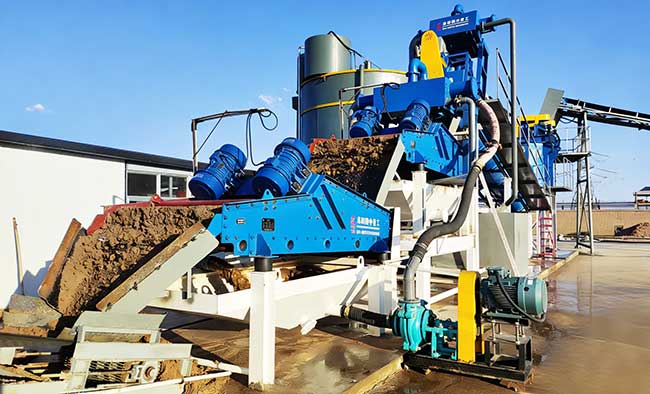

Base on lower water content sand is well needed and sold in market, we do research and manufacture a series new type dewatering screen. TS dewatering screen is mainly used in mining, construction for coarse or fine sand dehydrate processing.With the advantages of simple structure and easy maintenance, it becomes a hot seller in our market.



Working principle

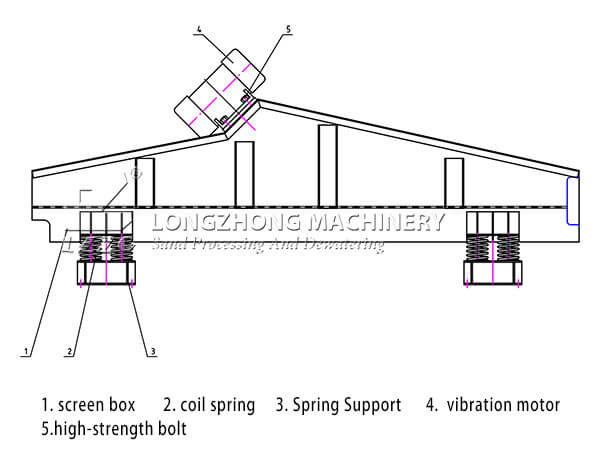

Dewatering screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal forces is generated by the eccentric blocks will superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand can be dehydrated and filtered.



Features
1. Advanced structure, light weight, high dehydrating ratio with new type vibrating motors.
2. Simple structure, easy maintenance.
3. Cross beam and screen body connect with high strength bolts, no welding and easy to remove and maintenance.
4. Polyurethane screen (PU) high screening ratio, big capacity,long service life and no blocking.
5. Widely used, less replacement parts.

222 gf hjj IMG_4313

Specifications
Model Screen area (m²) Power (kw) Capacity (t/h) Feed size (mm) Weight (kg) Overall dimension (L*W*H)(mm)
TS0918 1.62 2*0.75 10-20 ≤10 1600 1885*1290*1024
TS0924 2.16 2*0.75 10-20 ≤10 2000 2485*1290*1224
TS1224 2.88 2*1.5 30-50 ≤10 2300 2485*1590*1324
TS1230 3.6 2*2.2 30-50 ≤10 2530 3085*1590*1424
TS1236 4.32 2*2.2 30-50 ≤10 2880 3685*1590*1524
TS1530 4.5 2*3 50-80 ≤10 3180 3083*1890*1421
TS1536 5.4 2*3 50-80 ≤10 3300 3683*1890*1601
TS1836 6.48 2*4 100-150 ≤10 3750 3715*2466*1855
TS1842 7.56 2*4 100-150 ≤10 4380 4315*2466*2044
TS1845 8.1 2*4 100-150 ≤10 4680 4515*2446*2135
TS1848 8.64 2*6.5 100-150 ≤10 4960 4915*2466*2244
TS2442 10.08 2*7.5 130-180 ≤10 5130 4315*3085*2042
TS2445 10.8 2*7.5 130-180 ≤10 5450 4615*3085*2140
TS2448 11.52 2*7.5 130-180 ≤10 5880 4915*3085*2242
