What Is Slurry Treatment

NJFX Slurry treatment system is widely used in the purification and recycling of slurry for the construction of hydro power, continuous concrete wall, slurry shield tunnel, etc.

This equipment is increasingly becoming a necessity of civilized construction since it not only can cut down construction cost, but also can reduce the pollution of the environment.

Slurry Treatment Equipment

Product consultation, quick reply.


Complete within the specified time as required.

The Installation

On-site installation, on-site test.


If you have any questions, feel free to contact.

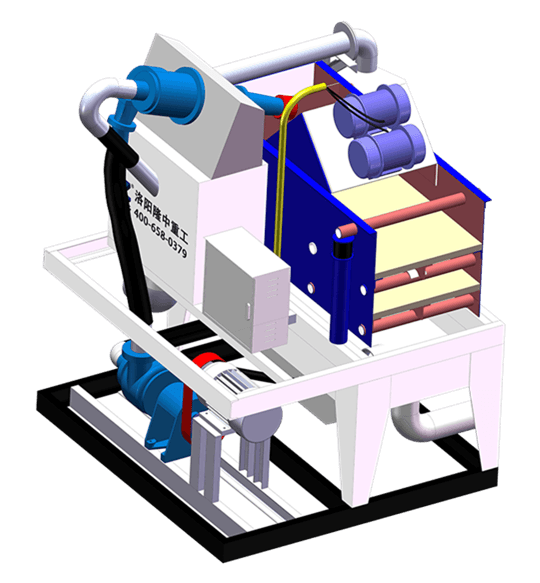

Principle image

How slurry treatment equipment work?

The slurry pump sucks the mud from the mud pit, then enter into bottom layer screen of dewatering vibrating screen through buffer box, the coarse particles in the slurry are screened out and the mud flow to mud tank through the bottom layer screen of dewtering screen. The slurry pump sucks the slurry from the groove and injects the slurry with certain kinetic energy tangentially along the pipeline from the slurry inlet of the desander.

The centrifugal pump takes mud from the mud tank, and feed to desander hydroyclone with pressure for centrifugal separation, the solids/sand was discharged to upper screen of the dewatering vibrating screen from the outlet nipple of the hydrocyclone. After dewatering process of the upper screen, the drier fine residue is separated out. The mud passed the upper screen returns back to the mud tank.

The clean slurry treated by hydrocyclone is eventually transported along the outlet pipe or returned to the mud tank.

Some Features that Made us Popular

Fully purifying the mud can not only reduce the construction cost, but also reduce the pollution to the environment.

Part Specifications

Get the latest technical parameters of slurry treatment equipment in detail before purchase, so as to serve as a reference.

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Screen Layer Hydrocyclone (mm) Overall Size (mm)
JH-FX40 ≤10 10-20 900*1800 2 250 4900*2500*3100
JH-FX60 ≤10 20-50 1200*2400 2 300 5400*2800*3200
JH-FX80 ≤10 40-80 1500*3000 2 350 5800*3400*3600
JH-FX200 ≤10 60-100 1800*4200 2 300*2 7200*3800*4200
JH-FX300 ≤10 80-150 2400*4200 2 350*2 7200*4400*4600

Popular Applications

Applications of LZZG slurry treatment equipment in sludge treatment

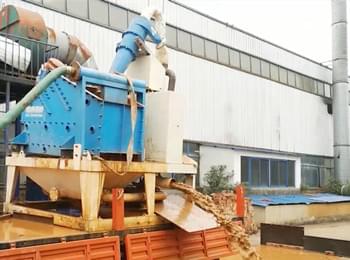

720p Mud Treatment Equipment
720p Mud Treatment Equipment

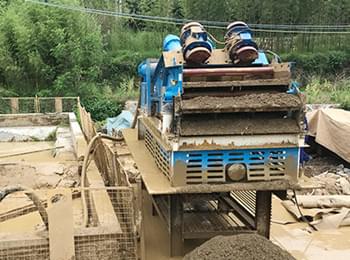

Mud Treatment Site
Shenzhen Mud Treatment Site

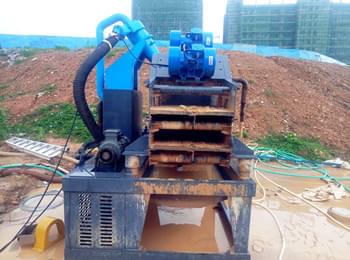

Slurry Treatment Equipment
Slurry Treatment(Double)
Sludge Purification System
Sludge Purification System
River Dredging System
River Dredging System
Pile Driving Mud Purifier
Pile Driving Mud Purifier
