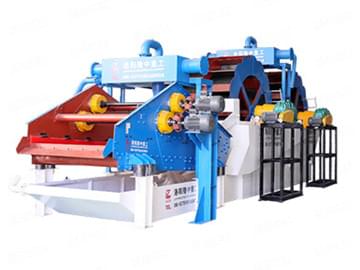

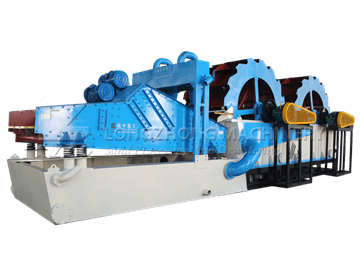

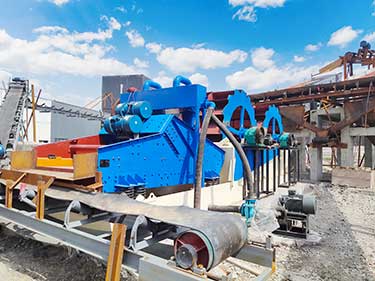

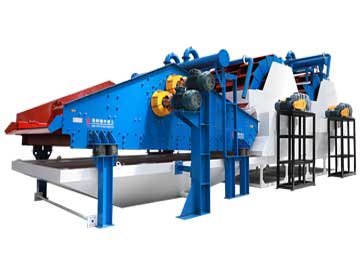

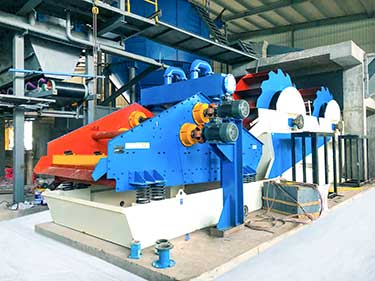

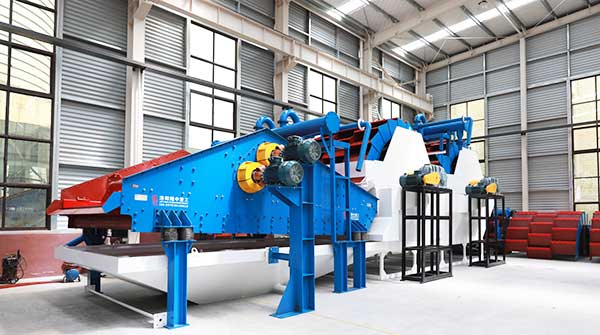

Dual Wheel Sand Washing and Recycling Machine

Input Size: 0-10mm

Output Size: ≥0.074mm

Production Capacity: 0-250t/h

Final Mud Content: <2%

Processing Materials: crushed sand, river sand, lake sand, sea sand, gravel, silica sand, coal, concrete aggregate, granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore, etc.

  • Overview

    The double wheel sand washer is a new type of sand washing machine. On the basis of our original sand washing equipment, the equipment has been updated and upgraded to meet the needs of customers. The double wheel sand washing machine is skillful in docking two wheel bucket washing machines with fine sand recovery machines. The whole machine has a reasonable structure and small area, which greatly reduces the investment cost for customers in the sand washing link. It integrates heavy water washing and fine sand dehydration and recycling.

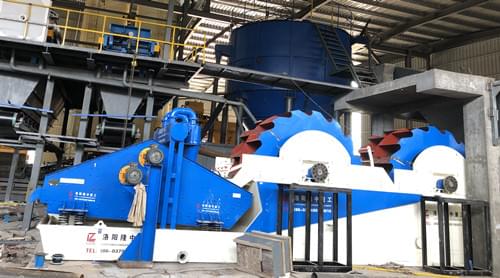

    dual-wheel3

  • Working principle

    After the pre-processed material enters the first storage tank, the first washing wheel starts to rotate through the motor and reducer, and the material in the first storage tank is picked up from the water and passed through the mesh in the washing wheel. The water and the material below the mesh size are missing, and the qualified material is transferred to the second storage tank.

    During the rotation of the washing wheel, the material is in full contact with the water, and water is used to remove the impurities on the surface of the material. so the material is cleaner. The second washing wheel repeats the process of the first washing wheel, and the material is cleaned again. Then the material enters the dewatering device and removes a lot of moisture through the vibrating screen, which makes the material more convenient to store and transport.

  • Features & Benefits

    1.Two sets of wheel sand washer , water storage tank, pumping tank, water reverse device, overflow device, separation and recovery device, dewatering device, reducer, pump, motor and other components.
    2.The structure is reasonable and the output is stable.

    dual-wheel2dual-wheel3dual-wheel5

  • Specifications

    Model Feeding Size (mm) Capacity (t/h) Impeller Size (mm) Hydrocyclone (mm) Screen Panel (mm) Power (kw) Overall Size (mm)
    2DL40 ≤10 20-40 1800*800 250*2 1200*2400 32.4 7120*3650*2160
    2DL60 ≤10 30-60 2500*1200 300*2 1500*3000 44 8900*5560*2750
    2DL80 ≤10 40-80 3000*1600 300*2 1800*4200 52 11600*5860*3370
    2DL100 ≤10 60-120 3000*1600 350*2 1800*4200 63 11600*5860*3370
    2DL150 ≤10 100-150 3600*2000 300*4 2400*4200 97 12800*6560*3970
    2DL200 ≤10 120-200 3600*2400 350*4 3000*4800 126 12800*7150*4170
    2DL250 ≤10 160-250 4200*3000 300*6 3600*6000 164 14400*7740*4860
