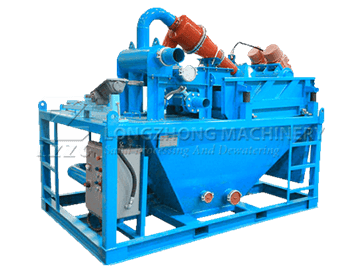

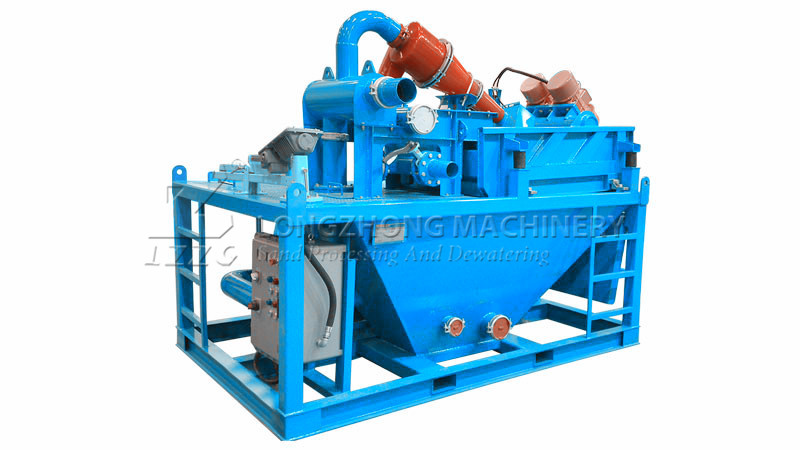

Desanding plant

desanding-plant
  • Product info
  • Technical

Brief introduction

desanding-plant

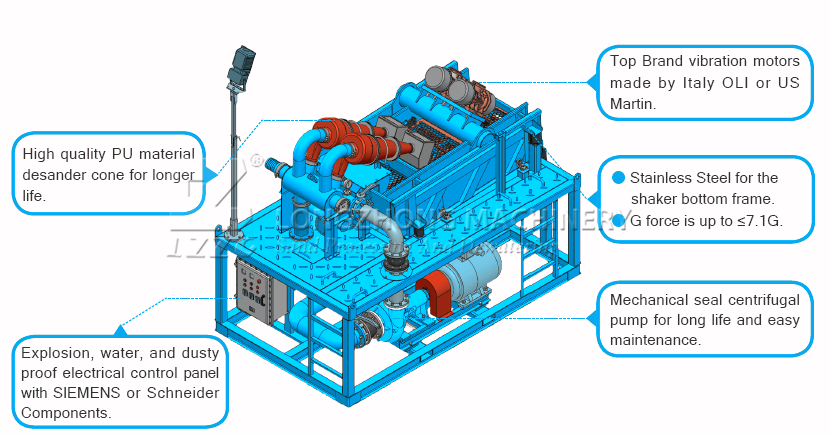

LZ  patent desanding plant is designed on the base of absorbing world advanced technology and combining with the domestic applications of the desander. it is popular for Bored Pile Slurry desanding plant, Mud recycling,TBM slurry treatment, HDD (trenchless) as well as water well drilling etc.



Working principle

desander-working-principle

The slurry pump sucks the mud from the mud pit, then enter into bottom layer screen of shale shaker (3) through buffer box(2), the coarse particles will be separated out and the mud flow to mud storage tank (4) through the bottom layer screen of shale shaker(3). The centrifugal pump (5) takes mud from the recycling tank(4), and feed to desander cone (6) with pressure for centrifugal separation, the  solids/sand  was discharged to upper shaker(3) from the outlet nipple of the desander cone. After dewatering process of the upper shaker(3), the fine solids was separated out. The mud passed the upper shaker screen returns back to recycling tank(4),the clean mud entered into intermediary tank(7) through desander cone overflow pipe. The mud in the intermediary tank (7) will go out through outlet pipe (9) or go back to recycling tank (4) depends on the fluid level in the recycling tank.
In the mud circulation process, there is a fluids level float switch (8) between intermediary tank (7) and recycling tank (4), it can balance the fluids level in the recycling tank(4). When mud level is low in the recycling tank (4) the overflow from the desander will enter recycling tank (4) through the intermediary tank (7). When the mud level is too high in the recycling tank (4), the mud will overflow to the intermediary tank (7) and go out from the outlet pipe (9). If operators want to get high quality clean fluids, the feeding capacity to the system can be reduced, and the repeat cleaning process will to get the result.



Technology Advantages

1.Reduce the fine sand losing.
2.Stable vibration, long serving life and easy maintenance.
3.Fines 0.16-3mm brings good profits.
4.Unique in market, LZ patent product.

.

Specification
Specification JH-20/30 JH-50/30 JH-100/30 JH-200/60 JH-250/30 JH-250/45 JH-250/60
Slurryfeed capacity (m³/h) 20 50 100 200 250 250 250
Cutpiont d50 (µm) 30 50 30 60 30 45 60-20
Soild feed capacity (t/h) 10 10-26 25-50 25-80 25-80 25-80 25-80
Total capacity(kw) 9.7 17.2 24.2 48 58-60.8 58-60.8 58-60.8
Dismension(m) 2.2×1.26 ×2.35 2.3×1.25 ×2.46 3.0×1.9 ×2.3 3.54×2.25 ×2.83 3.54-4.63×2.25 ×2.64-3.4 3.54-4.63×2.25 ×2.83-3.4 3.54-4.63× 2.25×2.83-3.4
Weight(kg) 1700 2100 2700 4800 4900-7600 4900-7600 4900-7600
