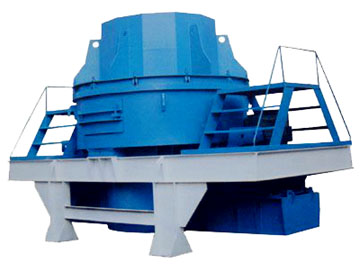

PCL Impact Crusher

PCL
  • Product info
  • Technical

Brief introduction

PCL Series Sand maker (Sand making machine) is the equipment which makes sand

artificially. It can be impact crusher or cone crusher according to the materiel condition

and production requirement.VSI sand maker provide high quality sand aggregate for

expressway, high speed railway, high-rise building, municipal works, and the construction

of hydroelectric dams. It is the first choice equipment for artificial sand making and the

stone reshaping.



Features & benefits

1)Large capacity, high output;Low consumption of wear parts

2)Excellent product shape;Hydraulic device, easy to maintain

3)Easy to install, easy to operate;Automatic detection, safe and reliable

4)A multifunctional, flexible design;Lubrication, automatic maintenance

5)International Quality Assurance



Main parts of PCL Sand maker

PCI Sand making machine has 7 main components such as the feed, whirl

crushing chamber, impeller experience, spindle assembly, chassis, transmission

and electrical machine. Because artificial sand has more advantages than natural

sand, Artificial sand maker is used and welcomed in sand making production line.



Working principle

1. Center Feeding: Raw material falls down into feed hopper, and then enters

impellor through central entrance hole. It is accelerated in high-speed impellor,

and then is thrown out at speed of 60-75m/s. When hitting impact plate, it is

crushed. Final products come downwards though outlet.

2. Ring Feeding: Raw material falls down into feed hopper, and then through ring,

it is divided into two parts by material-dividing plate. One enters into impellor

through the center of material-dividing plate. The other falls down from outside

of material-dividing plate. Material thrown out by impellor at speed of 60-75m/s

hits material coming down from outside of material-dividing plate. In this way,

material is crushed.





Specification

Model

Impeller  speed PCL Impact Crusher (r/min) Max  feed  size PCL Impact Crusher (mm) Capacity PCL Impact Crusher(t/h) PowerPCL Impact Crusher (kw) WeightPCL Impact Crusher(t)

Overall DimensionPCL Impact Crusher (mm)

PCL-600 2000-2470 30 20-35 60-90 7.5 2800×1500×2030
PCL-750 1500-2045 35 35-55 90-150 9.3 3300×1800×2440
PCL-900 1200-1685 40 55-100 110-180 12.6 3750×2120×2660
PCL-900(B) 1100-1580 40 60-130 150-180 14.5 3750×2300×2090
PCL-1050 10001430 45 90-160 180-264 17 4480×2450×2906
PCL-1250 850-1300 45 160-230 264-370 22.5 4563×2650×3716
PCL-1350 800-1185 50 200-360 320-440 26.3 5340×2940×3650
